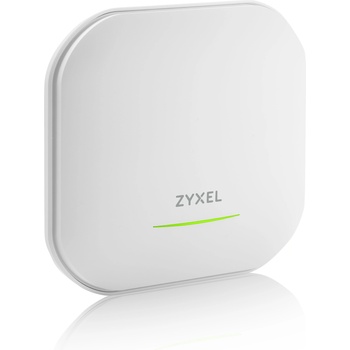

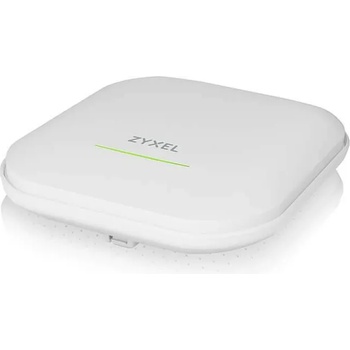

ZyXEL NWA220AX-6E
WiFi 6E – the Fastest Speed EVER
WiFi 6E, the extended version of the WiFi 6, provides a huge innovation leap to wireless industry by taking it into a much wider 6GHz radio spectrum that more than doubles WiFi capacity to further meet today’s demands and tomorrow’s challenges.
It includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6GHz that more than doubles the WiFi capacity to deliver ultra-fast speed and low-latency connections.
NWA220AX-6E for High-density WiFi
WiFi 6E, the new 6 GHz band, presents a solution to quenching the thirst for today’s hunger for more bandwidth. The NWA220AX-6E’s BandFlex radio design allows the AP to support either 5GHz or 6GHz band by configuration, making it the most economical choice to fit into your existing 5GHz coverage, as well as futureproofing the use of 6Ghz. The NWA220AX-6E is a perfect choice for:
Flexible BandFlex radio design
The Zyxel NWA220AX-6E is the dual-radio access point with a BandFlex radio design that can support either 5GHz or 6GHz by configuration, making it the most economical choice to fit into your existing 5GHz coverage as well as futureproofing the use of 6GHz.
Wireless
Standard
IEEE 802.11 ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 575 Mbps
5GHz: 4800 Mbps
6GHz: 4800 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz
USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz
Bandwidth
20-, 40-, 80- and 160-MHz
Conducted typical transmit output power*1
(limited by local regulatory requirements)
US (2.4GHz/5GHz/6GHz): 24/25/24dBm
EU (2.4GHz/5GHz/6GHz): 18/22/19dBm
RF Design
Antenna type
4x4 + 2x2 MIMO Embedded Antenna
Antenna gain
2.4 GHz: Peak Gain 3dBi
5 GHz: Peak Gain 5dBi
6 GHz: Peak Gain 6dBi
Minimum receive sensitivity
Min. Rx sensitivity up to -101 dBm
WLAN Feature
Band steering
Yes
WDS/Mesh*2
< p>YesFast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Yes
Lo ad balancing
Yes
Advanced Cellular Coexistence
Yes
Security
Encryption
WEP
WPA
WPA2-PSK
WPA3
Authentication
WPA
WPA2
WPA2-Enterpr ise
EAP
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
IPv6
Yes
VLANs
Yes< /p>
WMM
Yes
U-APSD
Y es
Operating mode
Nebula cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
Yes
SNMP
NO
Physical Specifications
Item
Dimensions (WxDxH)(mm/in. )
180 x 180 x 42 mm / 7.09 x 7.09 x 1.65
Weight (g/lb. )
650g/1.43lb
Packing
Dime nsions (WxDxH)(mm/in. )
197 x 190 x 60 mm/ 7.76 x 7.48 x 2.36
Weight (g/lb. )
780g/1.72lb
Included accessories
Mount plate
Mounting screws
MTBF (hr)
711,333
Physical Interfaces
Ethernet port
1 x 1/2.5Gbps LAN
1 x 1Gbps LAN
Power
PoE (802.3)at: power draw 21 W
DC input : 12 VDC 2A
PoE modes
IEEE802.3af: No Wireless
IEEE802.3at: Unrestricted
IEEE802.3bt: Unrestricted
