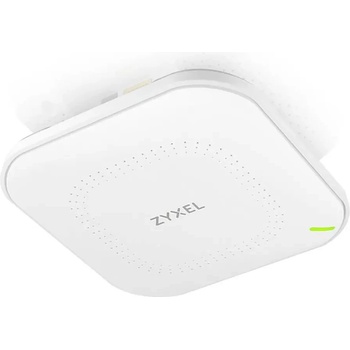

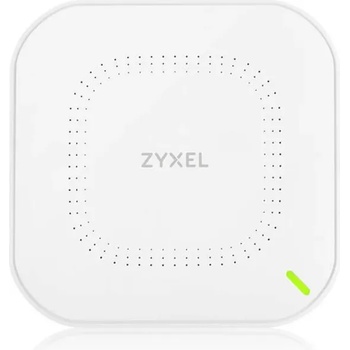

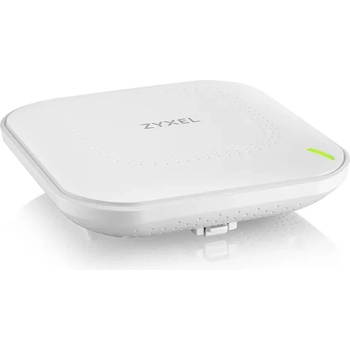

Zyxel NWA50AX-EU0102F

ZyXEL NWA50AX

Description:
802.11ax (WiFi 6) Dual-Radio PoE Access Point

Standard:
IEEE 802.11 ax/ac/n/g/b/a

MIMO:
MU-MIMO

Wireless speed
2.4GHz: 575 Mbps
5GHz: 1200 Mbps

Frequency band

2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz

5 GHz
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth:
20-, 40-, 80-MHz

Conducted typical transmit output power
US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm

RF Design
Antenna type: 2x2 + 2x2 MIMO embedded antenna

Antenna gain
2.4GHz: 3 dBi
5GHz: 4 dBi

Minimum Receive sensitivity
Min. Rx sensitivity up to -99 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Yes
DCS: Yes
Load balancing: No

Security
Encryption
WPA Personal
WPA2 Personal
WPA3 Personal

Authentication No

Access management
MAC filtering
Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode
Nebula Cloud managed
Standalone

ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration

Zyxel Wireless Optimizer
WiFi AP planning

Web UI/CLI
Yes

SNMP
NO

Item
Dimensions (WxDxH)(mm/in. )
140 x 140 x 37.5/5.51 x 5.51 x 1.48
Weight (g/lb. )
290/0.64

Packing
Dimensions (WxDxH)(mm/in. )
240 x 155 x 60/9.45 x 6.10 x 2.36
Weight (g/lb. )
600/1.32

Included accessories
Power adapter
Mount plate
Mounting screws

MTBF (hr)
1,010, 980

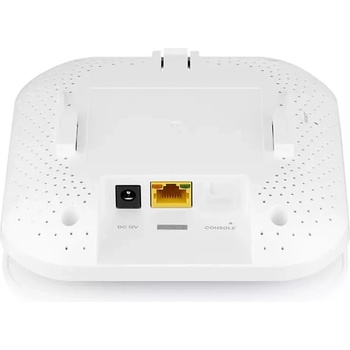

Physical Interfaces
Ethernet port: 1 x 10/100/1000M LAN

Power
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
PoE (802.3at): power draw 16 W

Environmental Specifications
Operating

Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)

Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)

Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893; LP0002
EN 60601-1-2

EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438

Safety
EN 60950-1
IEC 60950-1
BSMI
CNS14336-1
