Zyxel WX3100-T0 AX1800 (WX3100-T0-EU01V2F)

ZyXEL WX3100-T0-EU01V2F

The Zyxel WX3100-T0 Dual-Band Wireless AX1800 Gigabit Access Point/Extender enables carrier-grade performance. As a key component of the Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 delivers smooth Ultra HD and IPTV streaming and seamless roaming for the whole-home WiFi coverage.

Supporting the latest WiFi 6 (11ax) standard, the Zyxel WX3100-T0 offers speeds of up to 1200 Mbps* with 5G 2x2 802.11ax and 600 Mbps* with 2.4G 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), high-power amplifier and beamforming technologies empower the WX3100-T0 to deliver premium speed for multi-streaming data access and optimal WiFi experience without dead zones.

*The maximum wireless data is derived from IEEE standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Supporting TR-069 for simplified remote configuration, firmware upgrades, diagnosis and TR-181 issue-2 for enhanced visibility on the LAN network, the Zyxel WX3100-T0 enables superior customer service with the lowest possible OPEX.

**Features are only available when the WX3100-T0 is working with Zyxel Gateways or IADs

Featuring EasyMesh fully compliant Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 enhances your subscribers' experience by providing self-adapting, easy-to-manage whole-home WiFi coverage while reducing your service OPEX.

***Combining WX3100-T0 with the same Wireless Extender is advised for the ideal mesh network performance. Please contact us for detailed mesh function availability.

Sys tem specifications

Wireless standards

• 802.11 b/g/n/ax 2.4 GHz, data rate 600 Mbps
• 802.11 a/n/ac/ax 5 GHz, data rate 1200 Mbps

Wireless

• Wir eless Protected Setup (WPS)
• WMM
• WPA2/WPA2-PSK with AES security type
• WPA3-SAE
• BSS color
• TWT
• Multi SSID: up to 4
• Supports MU-MIMO, OFDMA DL/UL

VLAN/QoS

• 80 2.1Q VLAN tagging/un-tagging
• Supports flexible traffic classification

Management

• Web/HTTP/HTTPS: 2 level log-in via SSH or Telnet
• Firmware upgrade via web/TR-069 RPC method
• Dual images system recovery
• Configuration backup/update/restore default via Web
• TR-069/TR-098/TR-181 i2
• DHCP client and IGMP snooping

Operation mode

• AP/repeater

Hardware specifications

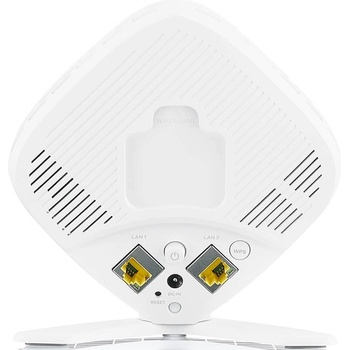

Ethernet interface

• Two 1GbE RJ-45 ports

Wireless

• 5 GHz: Two internal antennas
• 2.4 GHz: Two internal antennas

Button

• P ower on/off
• Reset
• WPS

LED indicator

• Power/system status
• Backhaul link quality
• WiFi
• WPS
• LAN1/LAN2 (LAP port)



Physi cal specifications

• Item dimensions (WxDxH):128 x 40 x 128 mm(5.03 x 1.57 x 5.03)
• Item weight: 314 g (0.69 lb. )
• Packing dimensions (WxDxH):279 x 137 x 44 mm(10.98 x 5.39 x 1.73)
• Packing weight: 532 g (1.17 lb. )
