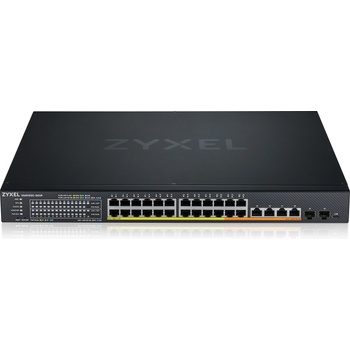

Zyxel XMG1930-30HP-ZZ0101F

ZyXEL XMG1930-30HP, 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink Суич, тип : Fixed Port Общ брой портове : 30 Основни портове, тип : 24x 100M/1G/2.5G Power Over Ethernet (PoE) : 22xPoE+/8xPoE++; Total PoE budget: 700W; IEEE 802.3at (PoE+) - Port 1 - 20; IEEE 802.3bt (PoE++, 60 W): Port 21 - 24 - 100M/1G/2.5G; Port 25 - 28 - 1G/2.5G/5G/10G Uplink портове : 4x 1G/2.5G/5G/10G, 2x 1G SFP/10G SFP+ Свободни (10GB) слотове : - Управление : Standalone management by Web interface; Cloud management by Nebula Control Center; Management through Telnet; Management through Web, SNMP; Firmware upgrade by FTP/Web; DHCP; Stackable : Dual stack; Zyxel iStacking; IEEE 802.1AD VLAN stacking (QinQ) Fans : - Захранване : Internal (100 - 240 V AC, 50/60 Hz); Max. power consumption: 864.1W; Min. power consumption: 47.8W Routing : Layer 3 static routing (L3 forwarding table: 512 IPv4 entries; Max. 512 IPv6 entries, Routing table: 32) Памет (Flash, RAM) : 32 MB/256 MB (Flash / RAM) Капацитет за маршрутизиране/превк ючване, Gbps : 240 Gbps Пропускателна способност, Mpps : 178.5 Mpps MAC адреси : 16 K VLAN (брой, стандарти) : VLAN routing; Guest VLAN; 802.1Q Static VLANs/Dynamic VLANs: 1K/4K; Support up to 4K VLAN ID; Independent VLAN Learning (IVL); Port-based VLAN; Voice VLAN; VLAN trunking; Protocol-Based VLAN; IP subnet-based VLAN;MAC-based VLAN; IEEE 802.1AD;VLAN stacking QoS : No. of hardware queues per port: 8; 802.1p queuing methods: SPQ, WRR, WFQ; Storm control: broadcast, unknown L2MC, unknown unicast (DLF); Rate limiting per port; Policy-based rate limiting; Policy-based prioritization L2 мрежови стандарти : IEEE 802.3ab/an/bz/ae L3 мрежови стандарти : IEEE 802.3x flow control; IEEE 802.3ad LACP aggregation; IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP): IEEE 802.1s Multiple Spanning Tree Protocol (MSTP IPv6 functionality : IPv6 over Ethernet; IPv6 addressing architecture; Dual stack; ICMPv6; Path MTU; Minimum path MTU size of 1280; Encapsulation for maximum MTU of 1500; Neighbor discovery; DHCPv6 relay; Default DHCP client mode Сигурност : 802.1X; Port security; MAC authentication; Static MAC forwarding; SSL; Static ARP; Policy-based security filtering; CPU protection; SHA2 HTTPS certification; RADIUS; ZON Utility Размери (Ш, Д, В), mm : 441 x 270 x 44 mm Опция за монтаж : Rackmount



.                           Комутатор
