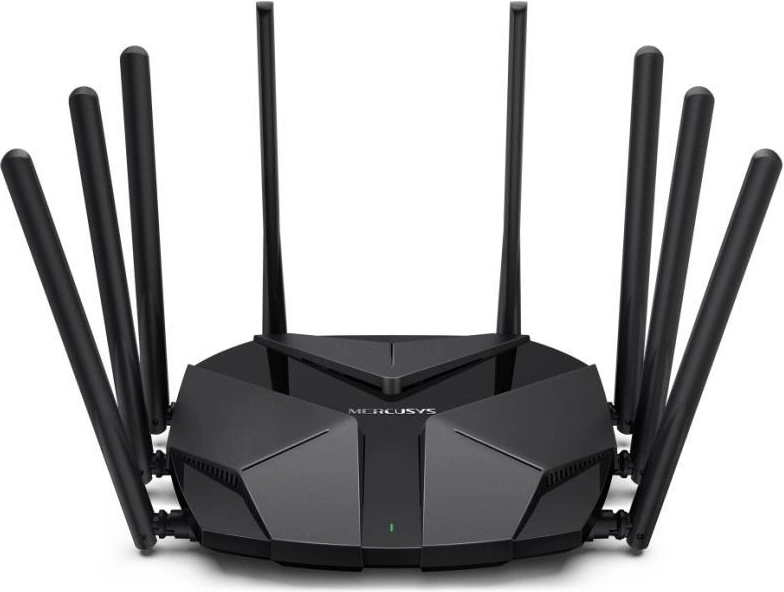

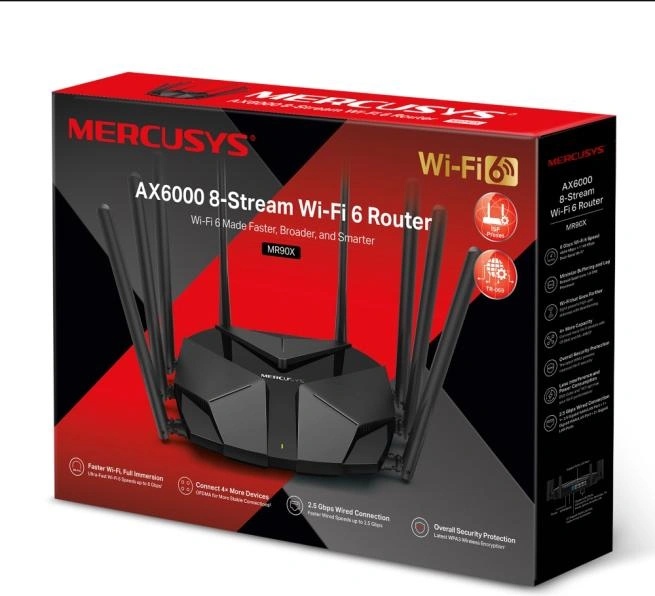

Mercusys MR90X

- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streamings, and downloading, all at the same time.
- 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
MORE DEVICES, MORE FUN – Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device

Specs:
Wireless
Wireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds
4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

Reception Sensitivity
11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)

Wireless Security
WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions
Enable/Disable Wireless Radio, WMM

Hardware
Dimensions
209 × 172.2 × 42.4 mm

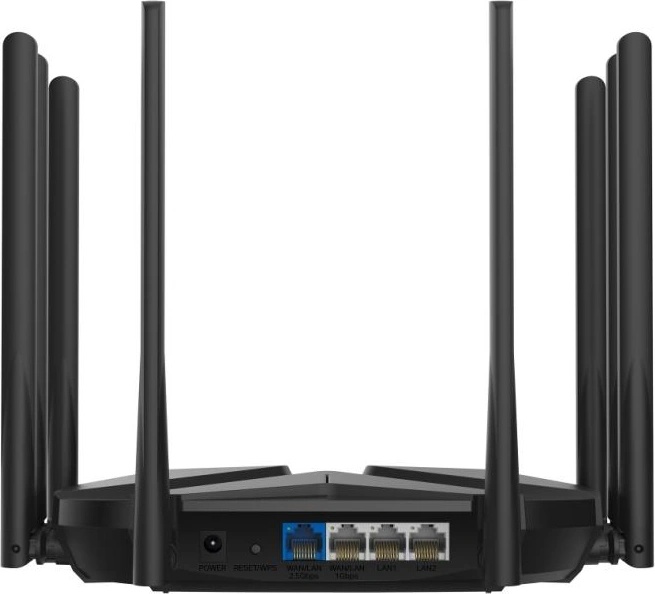

Interfaces
1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port + 2× Gigabit LAN Ports

Button
Reset/WPS Button

Antenna Type
8× Fixеd Omni-Directional Antennas

Software
WAN Typе
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

VPN Server
OpenVPN, PPTP supported

6957939000875

Продукт известен още и като MR 90 X AX 6000, MR90XAX6000, MR 90X AX6000, MR90X AX 6000
