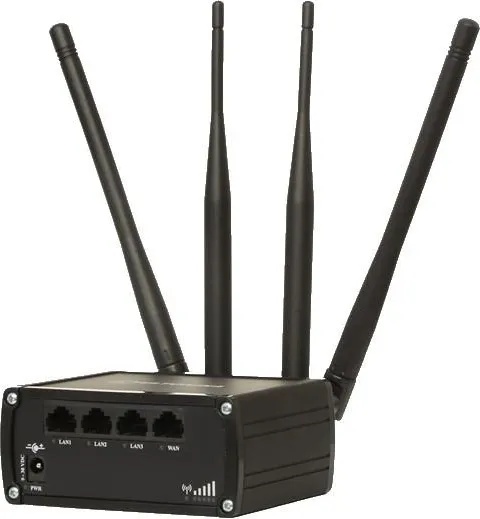

Teltonika RUT950

RUT950 е високонадежден и защитен LTE рутер за професионално ползване, който осигурява бърза работа през мобилни клетъчни мрежи със скоросто до 100 Mbps. Разполага с гнезда за две SIM карти и осигурен failover-режим за превключване между тях. Конекторите за външни антени позволяват бързо да се намери точката с най-добър сигнал.

Cellular Bands(EU):

• LTE: FDD B3/B7/B20 (1800/2600/800 MHz)
• 3G: 850/900/2100 MHz
• 2G: 900/1800 MHz

Cellular Data rates (DL/UL):

• LTE: 100 / 50 Mbps
• DC-HSPA+: 42 / 5.76 Mbps
• WCDMA: 384 / 384 Kbps
• EDGE: 296 / 237 Kbps

Ethernet

• IEEE 802.3, IEEE 802.3u standards
• 3 x LAN 10/100Mbps Ethernet ports
• 1 x WAN 10/100Mbps Ethernet port
• Supports auto MDI/MDIX

WiFi

• IEEE 802.11b/g/n WiFi standards
• 2x2 MIMO
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401 – 2.495GHz WiFi frequency range
• 20dBm max WiFi TX power
• SSID stealth mode and access control based on MAC address

Hardware

• High performance 560 MHz CPU with 128 Mbytes of DDR2 memory
• 5.5/2.5mm DC power socket
• Reset/restore to default button
• 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
• 4 x Ethernet LEDs, 1 x power LED
• 1 x bi-color connection status LED, 5 x connection strength LEDs

Software

• OpenVPN, IPsec, GRE, L2TP, PPTP
• Backup WAN
• PPPoE
• Dynamic DNS
• SMS and ping reboot, periodic reboot
• Status, configuration via SMS
• Send/read SMS via HTTP POST/GET
• Monitoring by SNMP, SNMP trap, TR-069
• System log to record the status of the router
• VRRP
• QoS and web filter
• Wireless hotspot with or without RADIUS server
• SIM card switch controlled by signal, data limit, roaming
• Configuration profiles
• Dual image with safemode firmware
• Firmware update from bootloader via WebUI
• Restore point

Electrical, Mechanical & Environmental

• Dimensions (H x W x D): 80 mm x 106 mm x 46 mm
• Weight: 250 g
• Power supply: 100 – 240 VAC -> 9 VDC wall adapter
• Input voltage range: 9 – 30VDC
• Power consumption: < 7 W
• Operating temperature: -40 °C to 75 °C
• Storage temperature: -45 °C to 80 °C
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 5% to 95% non-condensing
