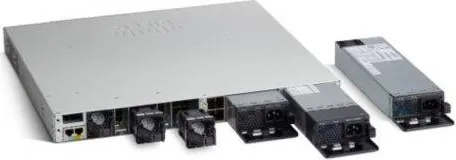

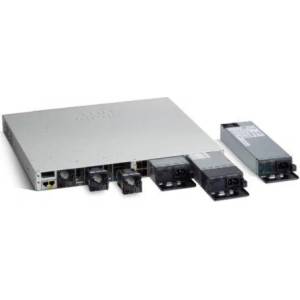

Cisco C9300-48T-A

Device Type: Switch - 48 ports - L3 - Managed - stackableEnclosure Type: Rack-mountable 1USubtype: Gigabit EthernetPorts: 48 x 10/100/1000Performance: Switching capacity: 128 Gbps
Stacking bandwidth: 480 Gbps
Forwarding rate: 190.48 MppsCapacity: IPv4 routing table entries: 32000
IPv6 routing table entries: 16000
Flexible NetFlow entries: 64000
VLAN IDs: 4000
Switched virtual interfaces (SVIs): 2000MAC Address Table Size: 32000 entriesJumbo Frame Support: 9198 bytesRouting Protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPngRemote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONFEncryption Algorithm: 128-bit AESFeatures: DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integrationCompliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1sRAM: 8 GBFlash Memory: 16 GBStatus Indicators: StatusInterfaces: 48 x 1000Base-T RJ-45
1 x USB 2.0Expansion Slots: 1 Expansion SlotPower Device: Internal power supply - hot-plugInstalled Qty: 1Max Supported Qty: 2Power Redundancy: OptionalPower Provided: 350 WattVoltage Required: AC 120/230 V (50 - 60 Hz)MTBF: 305, 870 hoursCompliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1Software Included: Cisco ONE C9300 DNA Advantage 48-port Term license, 25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE StealthWatch License Term - 25 Flow Licenses, Cisco ONE C9300 Advantage Add-On TermOS Required: Cisco IOS UniversalWidth: 44.5 cmDepth: 44.5 cmHeight: 4.4 cmWeight: 7.45 kgService & Support: Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 daysMin Operating Temperature: -5 °CMax Operating Temperature: 45 °CHumidity Range Operating: 5 - 90% (non-condensing)Min Storage Temperature: -40 °CMax Storage Temperature: 70 °CHumidity Range Storage: 5 - 90% (non-condensing)
