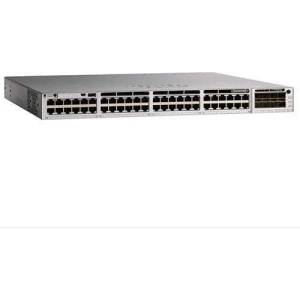

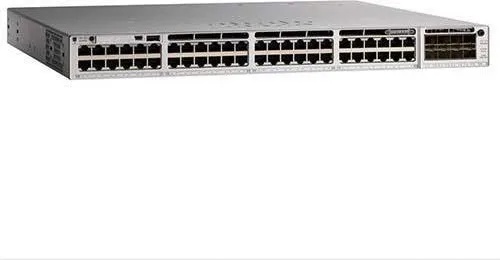

Cisco Catalyst 9200 (C9200-48P-E)

Cisco Catalyst 9200 48-port PoE+ Switch, Network Essentials Суич, тип : Fixed Port Общ брой портове : 48 Основни портове, тип : 48x10/100/1000Base-T Power Over Ethernet (PoE) : IEEE 802.3at PoE+ (up to 30W per port), Perpetual PoE, Fast PoE; Available PoE Power: 740W* (Default primary power supply - PWR-C5-1KWAC), 1440W* (Optional secondary power supply - PWR-C5-1KWAC), *Limited by port number and port rating Uplink портове : 0 Свободни (10GB) слотове : Modular uplink options (C9200-NM-4G, C9200-NM-4X) Управление : SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP Stackable : Cisco StackWise-160 stacking ports: copper-based Cisco StackWise cabling, Stacking hardware (C9200-STACK-KIT=), Supported stack members: Other C9200 models with same license level (8 Number of members) Fans : Field-Replaceable Units (FRU) redundant Захранване : Dual field-replaceable power supplies, Default primary AC power supply: PWR-C5-1KWAC Routing : Layer 3 Advanced Памет (Flash, RAM) : Flash memory: 4 GB; RAM: 4 GB DRAM Капацитет за маршрутизиране/превк ючване, Gbps : 176 Gbps Пропускателна способност, Mpps : 261.9 Mpps MAC адреси : 32000 MAC address VLAN (брой, стандарти) : VLAN IDs: 4096; IEEE 802.1Q VLAN QoS : Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per port L2 мрежови стандарти : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x L3 мрежови стандарти : IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF] IPv6 functionality : IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting Сигурност : Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems Размери (Ш, Д, В), mm : 445 x 350 x 44 Опция за монтаж : Rackmount Други : Необходим е минимум 3-годишен лиценз DNA Essentials.



.                           Комутатор За тежки и едрогабаритни стоки, условията за доставка се уточняват допълнително
