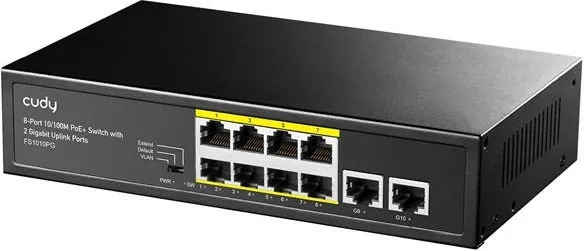

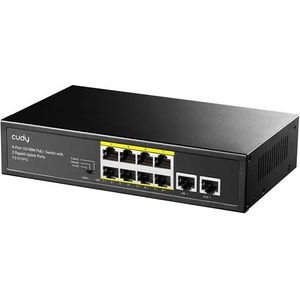

Cudy FS1010PG

● Support IEEE802.3at and IEEE802.3af Standard

● 120W PoE power output totally，up to 32W for one PoE port

● Support IEEE802.3x full duplex and half duplex flow control

● Support VLAN and CCTV Function

● Panel lights to monitor working state and help fault analysis

● Perfect security mechanism

● Line-speed forwarding intelligent identification







120 W Power budget & 30 W Maximum One Port

Supports a total PoE power of 120 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design

Plug and Play, Easy of use. Fanless design for silent operation. Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+), 3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business



Specifications :

Model
FS1010PG

PoE standard
IEEE802.3af/at

Interface
10*10/100Mbps The RJ45 port through consultationa

Key function
CCTV&VLAN

PoE port
1~8 port

PoE Total
120W

Power supply
120W

RJ45 PoE power supply
Mode A     Anode1/2     Cathode3/6

PoE output-port
Max 32W

Indicator
PWR, LNK/ACT, PoE

Network media
10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)；

MAC Address Table
8K, Automatic study, automatic updates

Jumbo frame
1528Bytes

Packet buffer
2M bit

Transfer Mode
Store-and-forward

Packet forwarding rate
1.48Mpps

Bandwidth
2M bit

Fan
Fanless

Device Dimension
220*150*44mm

Machine Weight
>1kg

Green energy saving
Support IEEE（802.3az)

Mains Input
100~240V AC， 50/60Hz

Operating Temperature
0°C ~ 40 °C

Storage Temperature
-40 °C ~ 70 °C

Operating Humidity
10% ~ 90% non-condensing

Storage Humidity
5% ~ 90% non-condensing

Surge Protection
±4KV

MTBF
>50000 hour

Electrostatic standard
Contact 4KV, air 6KV
