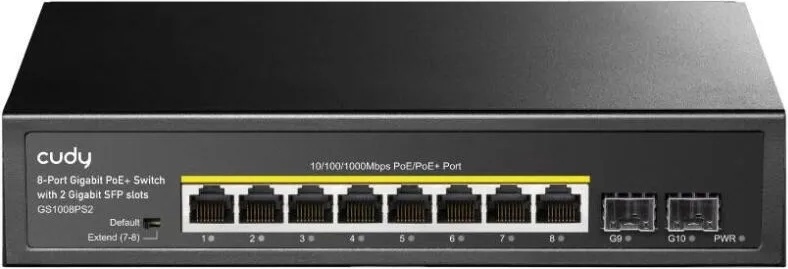

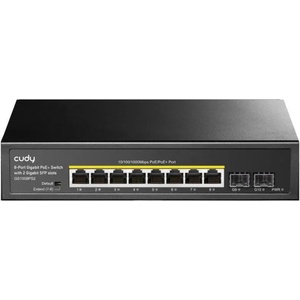

Cudy GS1008PS2

● 8 x gigabit PoE+ ports and 2 x gigabit SFP slots

● 120 watts total PoE power budget

● Extend mode(Port #7 ~ #8) supports PoE feeding up to 250 m

● IEEE 802.3af / 802.3at standard compliant

● IEEE 802.3X standard flow control

● Panel indicator monitoring status and help failure analysis



120W Power budget & 30W Maximum One Port

Supports 120W total PoE power and up to 30W for one PoE port. Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.

Rack Mount & Wall Mount & Desktop

● Provide a variety of installation methods for easy deployment in any environment

● Support Wall mount installation

● Support Desktop installation

Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business



Specification :

Power
AC100-240V50/60Hz

Ethernet

8* Gigabit PoE Ports
2* Gigabit SFP Ports

Chipset

2*RTL8367S
RTL8238B

Bandwidth
20Gbps

Pack forward rate
14.88Mpps

MAC address
2K

Jumbo Frame
9216bytes

Transfer mode
Store and forward

MTBF
100000 Hours

Network Protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af(15.4W)
IEEE802.3at(30W)

Network Medium

10Base-T : Cat3, 4, 5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)

Optical Medium

Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um

LED Indicator
PWR (Power)，1-10 Green Light (Link&Data)

PWR

On: Powered on
Off: Powered off

1-10 Green Light (Link&Data)

On: Link normal

Off: Link blocked
Flashing: Data transmitting

DIP Switch

Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog)

Structure Size

Product Dimensions: 220*161*44mm

Package Dimensions: 315*215*85mm

Product N. W: 0.88kg
Product G. W: 1.38kg

Packing Info

Carton Dimensions: 445*445*335mm

Packing Quantity: 10 PCS
Packing Weight: 14.8KG

Power Voltage

Input Voltage: AC 100-240 V 50-60Hz

Power Consumption
＜30W

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~90%, non-condensing
