D-Link DGS-1026MP
692,84 лв.
Доставка 20,03 лв.,Информация в магазинаВид:
Най-евтини оферти (1)
Описание на продукта
Параметри на продукта
Производител
D-Link
Брой портове 10/100/1000 Mbit/s
26
PoE съвместимост
Да
Управляем
не
Параметри на продукта
Производител
D-Link
Брой портове 10/100/1000 Mbit/s
26
PoE съвместимост
Да
Управляем
не
Описание на продукта

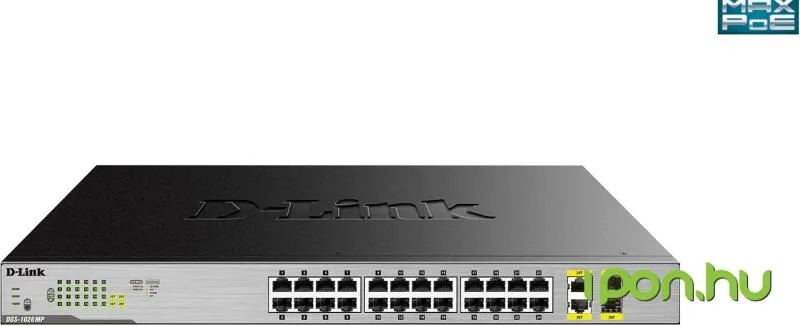

D-Link DGS-1026MP
26 Port Gigabit Max PoE Switch
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.
Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.
Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.
Technical Specifications
General
Number of Ports
24 x 10/100/1000 Mbps ports
2 x 10/100/1000BASE-T/SFP combo ports
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Switching Capacity
52 Gbps switching fabric
64 Byte Max. Forwarding Rate
38.69 Mpps
Media Interface Exchange
Auto MDI/MDI-X
Transmission Method
Store-and-forward
MAC Address Table
8K (8192) entries per device
Packet Buffer Memory
512 KB per device
PoE Standards
IEEE 802.3at
IEEE 802.3af
PoE Ports
Ports 1 to 24
PoE Budget
370 W
Up to 30 W per port
Diagnostic LEDs
Per Unit
Power
PoE Power Budget
Per Port
Activity/Link
Speed
Per PoE Port
Power Fail
Power OK
Physical
Fan
2 x Smart fans
Dimensions
440 x 250.4 x 44 mm (17.32 x 9.86 x 1.73 inch)
Weight
3.1 kg (6.83 lbs)
Power Input
AC Input: 100 to 240 V AC, 50/60 Hz
Power Consumption
Maximum:
444.1 W (PoE on)
82.1 W (PoE off)
Standby:
240 V: 18.25 W
Temperature
Operating: 0 to 50 C (32 to 122 F)
Storage: -40 to 70 C (-40 to 158 F)
Humidity
Operating: 10% to 90% RH, non-condensing
Storage: 5% to 90% RH, non-condensing
MTBF
205,975 hours
Heat Dissipation
1,515 BTU/h
EMI
FCC Class A
CE
CCC
RoHS
VCCI
BSMI
RCM
Safety
UL/CSA 60950-1
EN 60950-1
IEC 60950-1
26 Port Gigabit Max PoE Switch
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.
Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.
Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.
Technical Specifications
General
Number of Ports
24 x 10/100/1000 Mbps ports
2 x 10/100/1000BASE-T/SFP combo ports
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Switching Capacity
52 Gbps switching fabric
64 Byte Max. Forwarding Rate
38.69 Mpps
Media Interface Exchange
Auto MDI/MDI-X
Transmission Method
Store-and-forward
MAC Address Table
8K (8192) entries per device
Packet Buffer Memory
512 KB per device
PoE Standards
IEEE 802.3at
IEEE 802.3af
PoE Ports
Ports 1 to 24
PoE Budget
370 W
Up to 30 W per port
Diagnostic LEDs
Per Unit
Power
PoE Power Budget
Per Port
Activity/Link
Speed
Per PoE Port
Power Fail
Power OK
Physical
Fan
2 x Smart fans
Dimensions
440 x 250.4 x 44 mm (17.32 x 9.86 x 1.73 inch)
Weight
3.1 kg (6.83 lbs)
Power Input
AC Input: 100 to 240 V AC, 50/60 Hz
Power Consumption
Maximum:
444.1 W (PoE on)
82.1 W (PoE off)
Standby:
240 V: 18.25 W
Temperature
Operating: 0 to 50 C (32 to 122 F)
Storage: -40 to 70 C (-40 to 158 F)
Humidity
Operating: 10% to 90% RH, non-condensing
Storage: 5% to 90% RH, non-condensing
MTBF
205,975 hours
Heat Dissipation
1,515 BTU/h
EMI
FCC Class A
CE
CCC
RoHS
VCCI
BSMI
RCM
Safety
UL/CSA 60950-1
EN 60950-1
IEC 60950-1
