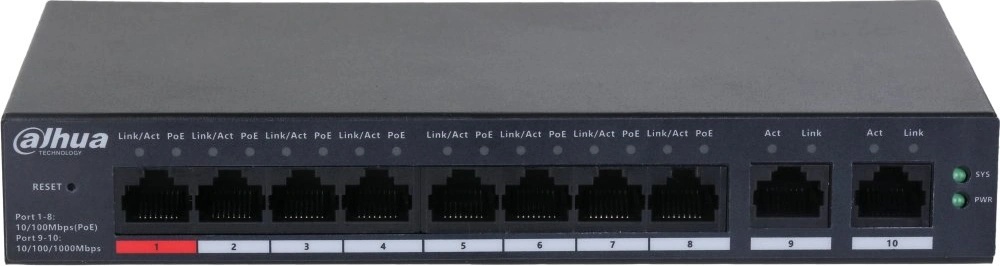

Dahua CS4010-8ET-110 10-Port Cloud Managed Desktop Switch with 8-Port PoE > Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
  Hardware Inclu ded Power Adapter  YesPoE YesEthernet Port 8Ethernet Port Speed 10/100 MbpsEthernet Port Uplink Speed 10/100/1000 MbpsDescription of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）Reset Button 1Power Supply External power supply: 54 VDC, 2.22 AOperating Temperature –10 °C to +55 °C (+14 °F to +131 °F)Operating Humidity 5%–95% (RH), non-condensingStorage Temperature –40 °C to +70 °C (–40 °F to +158 °F)Storage Humidity 5%–95% (RH), non-condensingPower Consumption Idling: ≤3 W; Full load: 110 W Performance Layer Layer 2Management Type YesSmart Managed Switch YesMTBF 150 yearsSwitching Capacity 5.6 GbpsPacket Forwarding Rate 4.17 MppsPacket Buffer Size 4 MbitJumbo Frame 9216 ByteMAC Table Size 8KVLAN Number 32Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab Feature PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3btPoE Power Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 WPoE Power Consumption Management YesPoE Pin Assignment 1,2, 4,5（V+）, 3,6, 7,8（V-）Long Distance PoE Transmission YesVLAN Function Port-based VLANIEEE 802.3x Flow Control YesDHCP Function DHCP ClientEquipment Management Web management; App management General Static s Protection Air discharge: 8 kV; Contact discharge: 6 kVLighting Protection Common mode: 4 kV; Differential mode: 2 kVNet Weight 0.5 kg (1.10 lb)Gross Weight 1.25 kg (2.76 lb)Product Dimensions 190 mm × 106 mm × 30 mm (7.48" × 4.17" × 1.18") (L × W × H)Packaging Dimensions 256 mm × 244 mm × 87 mm (10.07" × 9.61" × 3.43") (L × W × H)Casing Material Sheet metalInstallation Desktop mount; wall mountCertifications CE

Продукт известен още и като CS 4010 8 ET 110, CS40108ET110, CS4010 8ET 110, CS 4010-8ET-110, CS4010-8ET 110
