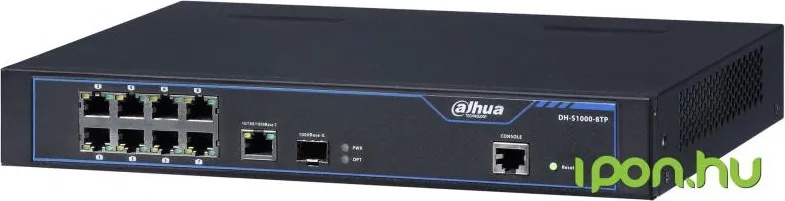

Dahua S1000-8TP

10-портов Two-layer HI-POE суич оптимизиран за системи за видеонаблюдение. 8 порта х 10/100Base-TX POE, 1 uplink порт x 10/100/1000Base-T, 1 x Оптичен порт 10/100/1000Base-X.
POE protocol IEEE802.3af, IEEE802.3at, Порт: 1 и 2 макс 60W, порт 3 и 4 макс 30W, порт 5,6, 7 и 8 макс 15.4W.
Обща мощност 120W.
Switching Capacity: 7,6Gbps, буферна памет 1Mb.
Работна температура -10C~55C. Вградена гръмозащита 2KV.
Размери: 300х220х44.4mm.
Комплект със захранващ адаптер.

8-Port Hi- PoE Switch
Two-layer Hi-PoE switch
Port1, 2 support 60W (Hi-PoE), IEEE802.3af and IEEE802.3at standards
Support IEEE802.3af, IEEE802.3at standard
MAC auto study and aging, MAC address list capacity is 8K

Technical Specification
Model
DH-S1000-8TP

Ethernet Port
1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T(PoE power supply)

PoE Power Consumption
port1, 2 support ≤60W (Hi-PoE)
port3, 4 support ≤30W
port 5, 6, 7, 8 support ≤15.4W
Total≤120W

PoE Protocol
IEEE802.3af, IEEE802.3at

Switching Capacity
7.6G

Packet Forwarding Rate
4.17Mpps

Packet Buffer Memory
1Mb

MAC Table Size
8K

Flow Control
Enable by default

Application Humidity
10%-90%

Power
AC 100~240V

Lightning Protection
Common Mode 4KV
Differential Mode 2KV

Working Temperature
-10°C~55°C

Weight
2.66kg

Dimension(W×D×H)
300mm×220mm×44.4mm

Accessories
Model

PFT3950
1.25G 850nm, 500m, LC, Multi-mode
PFT3960
1.25G 1310/1550nm, 20km, LC, Single-mode
PFT3970
1.25G 1550/1310nm, 20km, LC, Single-mode

Продукт известен още и като S 1000 8 TP, S10008TP, S1000 8TP, S 1000-8TP, S1000-8 TP
