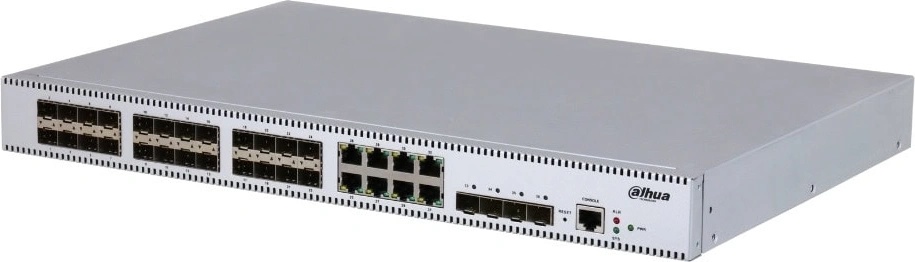

Dahua SG5036FX 36-Port L2+ Managed Gigabit Switch with 4-Port 10G SFP+ > All-gigabit port design (10 gigabit uplink port).  > Supports STP, RSTP and ERPS. > IEEE802.1Q-based VLAN configuration. > Static link aggregation and static LACP.  > Easy to manage the device through the webpage. > EMC compliant, the device is lightning proof. > Desktop mount and rack mount.   Basic Layer Layer 2Switching Capacity 144 GbpsPacket Forwarding Rate 107.136 MppsDescription of Function Slots Port 1-24: 24 × SFP 100/1000 Mbps;
Port 25-32: 8 × RJ-45 10/100/1000 Mbps;
Port 33-36: 4 × SFP+ 1/10 GbpsOperating Temperature –20 °C to +55 °C (–4 °F to +131 °F)Operating Humidity 5%–95% (RH), non-condensingStorage Humidity 5%–95% (RH), non-condensingPower Supply 2 built-in power supplies: 100–240 VAC, 50/60 Hz, 2.5 A MaxPower Consumption Idling load: 23.8 W
Full load: ≤ 100 WStatics Protection Air discharge: 8 kV;
Contact discharge: 6 kVLightning Protection Common mode: 4 kVDifferential mode: 2 kVNet Weight 3.8 kg (8.38 lb)Gross Weight 5.3 kg (11.68 lb)Product Dimensions 440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H)Packaging Dimensions 528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H)Installation Rack mount; desktop mount Hardware Ethernet Port 8Debugging 1 × Console portReset Button 1 Performance Packet Buffer Size 16 MbitJumbo Frame 12288 ByteMAC Table Size 32KCommunication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3adVLAN Number 4094VLAN Interface 10 Feature Ethernet Loop Protection STP/RSTP/ERPSVLAN Function Port-based VLANLink Aggregation LACP;
Static link aggregation;
Dynamic link aggregationPort Feature IEEE 802.3x flow control;
Unknown unicast suppression;
Multicast storm control;
Broadcast storm controlIEEE 802.3x Flow Control YesMulticast IGMP SnoopingReliability LLDPRouting Static routingDHCP Function DHCP ClientSecurity 802.1X;
Port isolation;
Radius;
HTTPSQoS/ACL SP/WRR queue scheduling;
802.1p and DSCP priority mapping;
Port speed limitEquipment Management Cloud management;
Web;
SNMP V1/V2C/V3;
NTP;
Logs;
Ping
