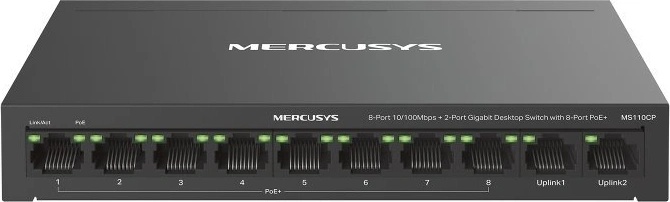

Mercusys MS110CP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

• 10 Ports:  8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
• Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports *
• 2× Uplink Ports: MS110CP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

  8 PoE+ Ports and 2 Gigabit Ports for Network DeploymentCompliant with the 802.3af/at Powered Devices, each of the 8 PoE+ ports supports a maximum power supply of 30 W. 2 Gigabit non-PoE ports are for uplink devices, one of which is used to connect to the internet and the other to the NVR. The total 65 W PoE power budget * can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS110CP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.  Long-Range up to 250 m with Extend Mode**Extend Mode** increases PoE transmission distance to 250 m. MS110CP has eight long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.   Standards and Protocols  IEEE 802.3x Flow ControlDimensions 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)PoE Ports RJ45Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 WInterfaces 8× 10/100 Mbps Ports, 2× Gigabit PortsExternal Power Supply External Power Adapter (Output: 53.5V/1.31A)Installation Desktop / Wall MountData Rates 10/100 Mbps at Half Duplex
20/200 Mbps at Full DuplexJumbo Frame 2 KBSwitching Capacity 5.6 GbpsMAC Address Table 2KMax Power Consumption 3.5W（220 V / 50 Hz, no PD connected）74.93W（220 V / 50 Hz, with 65W PD connectedMax Heat Dissipation 11.935 BTH/h （no PD connected)255.51 BTH/h（with 115W PD connected）

Продукт известен още и като MS 110 CP, MS 110CP, MS110 CP
