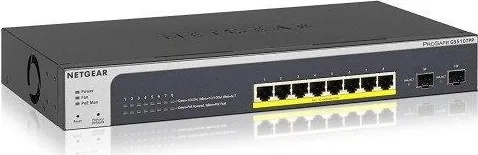

Netgear GS510TPP
GS510TPP-100EUS

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.

Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can require GS510TPP 8-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports: 190W PoE budget offers more headroom. Temperatureand load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: unlike other high power PoE switches on the market, the GS510TPP supports quiet desktop operation or rack mounting with a maximum of 32dB at full power and 25°C (77°F) ambient.

Technical Specifications:

10M/100M/1G RJ-45 copper ports: 8
PoE / PoE+ ports: 8 PoE+ (190W PoE budget)
100M/1G SFP (fiber) ports: 2 (dedicated)
USB port (for config file upload/backup & firmware updates): No

CPU: 400 MHz Cortex-A9 Single Core, 512MB RAM 16MB SPI + 256MB NAND FLASH
Packet buffer memory (Dynamically shared across only used ports): 1.5 MB
Forwarding modes: Store-and-forward
Bandwidth: 20 Gbps
Priority queues: 8
Priority queuing: Weighted Round Robin (WRR) and Strict Priority
MAC Address database size (48-bit MAC addresses): 16K
Multicast groups: 512
Number of IPv4 static routes: 32
Number of IPv6 static routes: 32
Number of VLANs: 256
Number of ARP cache entries: 479 ARP / 223 NDP
Number of DHCP snooping bindings: 8K
Access Control Lists (ACLs): 100 shared for MAC, IP and IPv6 ACLs
Packet forwarding rate (64 byte packet size) (Mpps): 14.88
Jumbo frame support: Up to 9K packet size

IEEE NETWORK PROTOCOLS:
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3ad Trunking (LACP)
IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
IEEE 802.1p Class of Service
IEEE 802.1D Spanning Tree (STP)
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree (RSTP)
IEEE 802.1x RADIUS Network Access Control

LEDS
Per port: Speed, Link, Activity
Per device: Power and Fan

Acoustic noise level @ 25°C (dBA) (ANSI-S10.12): 32 dBA
Mean Time Between Failures (MTBF) @ 25°C: 1,509, 979 hours
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames): 8.725s ; 7.933s ; 8.119s
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames): 3.313s ; 3.322s ; 3.293s
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames): 2.402s ; 2.405s ; 2.372s

Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts): 225 W
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts): 12.5 W
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr): 768.15 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az: Yes (deactivated by default)
Fan: 1

Operating temperature: 0° to 50°C
Humidity (relative): 90% maximum relative humidity (RH), non-condensing
Altitude: 3,000m maximum

Storage temperature: –20° to 70°C
Humidity (relative): 95% maximum relative humidity, non-condensing
Altitude: 3,000m maximum

Dimensions (W x D x H): 328 x 169 x 43 mm
Weight: 1.83 kg
