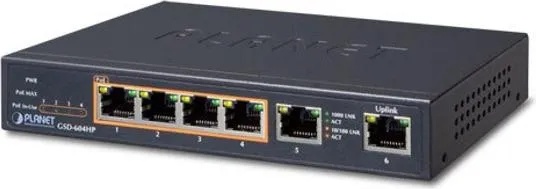

Planet GSD-604HP

Centralized Power Distribution for HD IP Surveillance System Solution
PLANET GSD-604HP provides four 802.3at PoE+ ports for catering to small-scale IP surveillance networks at a lower total cost. With Dual 10/100/1000BASE-T uplink ports, the recorded HD video files from the 4 PoE IP cameras can be powered by the GSD-604HP and saved in the 4-channel NVR systems or surveillance software to perform comprehensive security monitoring and manage the surveillance system in the local LAN or the remote site via Internet.
The GSD-604HP’s advanced features are as follows:

　■ 4-port PoE+, 55-watt PoE budget
　■ Two 10/100/1000Mbps uplink ports
　■ Port-based VLAN and Loop Protection features
　■ Compact size, fanless design

Perfectly Integrated Solution for PoE IP Camera and NVR System
The GSD-604HP provides four 802.3at/af PoE ports for catering to small-scale home and SOHO IP surveillance networks at a lower total cost. The GSD-604HP comes with a high-performance switch architecture and 55-watt PoE power budget. The recorded video files from the 4 PoE IP cameras can be powered by the GSD-604HP and saved in the 4-channel NVR system or using surveillance software to perform comprehensive security monitoring.
For instance, one GSD-604HP can be combined with one 4-channel NVR; that is, each of its PoE port can be linked to a specific 802.3af/at PoE IP camera for the administrators to centrally and efficiently manage the surveillance system in one site. The GSD-604HP’s Gigabit Ethernet TP interface also provides Gigabit Ethernet TP connection for uplink to NVR systems or public server groups.

Hardware Specifications

Network Connector
6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX
PoE Inject Port 4-port with 802.3af/at PoE injector function (port 1 to port 4)

LED Display
System:
Power (Green)
Per PoE port:
PoE (Orange, port 1 to port 4)
PoE max. (Orange)

Ethernet port:
1000 LNK (Green)
10/100 LNK (Orange)
Thermal Fan Fanless design
Switch Architecture Store and Forward switch architecture
MAC Address Table 8K MAC address table with auto learning function
Switch Fabric 12Gbps
Switch Throughput 8.92Mpps @64 bytes
Jumbo Packet 9216 bytes
Flow Control Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
Power Requirements 55V DC, 1.1A
ESD Protection 6kV DC

Power Consumption Max. 60 watts, 204.6 BTU
Dimensions (W x D x H) 160 x 92.5 x 28 mm
Weight 374g

Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget 55 watts

Standard Conformance
EMI Safety FCC Class B, CE
Standard Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Environment
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing
