Planet ISW-514PTF

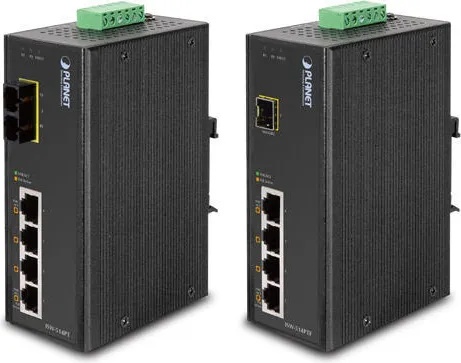

PLANET ISW-514PT PoE Industrial Ethernet Switch is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and operates reliably in heavy industrial demanding environments. The ISW-514PT series provides four 10/100Mbps copper ports supporting IEEE 802.3af Power over Ethernet injector and one 100Base-FX fiber optic interface delivered in an IP-30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-514PT series is an ideal solution to deploying surveillance system and wireless service in climatically demanding wide temperature range (-40 to 75 Degree C) environments. The 100Base-FX fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network.

4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
1-port 100Base-FX SFP interface

Hardware Specifications
10/100Base-TX Ports 4
100Base-FX Port 1
Fiber Port Type
ISW-514PTFVary on SFP
Connector Type
ISW-514PTFLC
Maximum Distance
ISW-514PTFVary on SFP
Optical Frequency
ISW-514PTFVary on SFP
Launch Power (dBm)
ISW-514PTFVary on SFP
Receive Sensitivity (dBm)
ISW-514PTFVary on SFP
IEEE 802.3af PoE ports 4
Dimensions (D x W x H) 135 x 87.8 x 56 mm
Weight 842g
Power LED Power1, Power2 and Fault
Port 1~4: PoE in-use, LNK/ACT
Port 5: LNK/ACT

IEEE 802.3af PoE ports 4
Dimensions (D x W x H) 135 x 87.8 x 56 mm
Weight 842g
Power LED Power1, Power2 and Fault
Port 1~4: PoE in-use, LNK/ACT
Port 5: LNK/ACT
Power Requirements 24 or 48 V DC, redundant power with polarity reverse protection function
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA . max. 15.4 watts
Power Pin Assignment 1/2(+), 3/6(-)

Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch fabric 1Gbps
Throughput (packet per second) 0.74Mpps
Network cables 10/100Base-TX:
Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max. )
EIA/TIA-568 100-ohm STP (100meters, max. )

Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)
