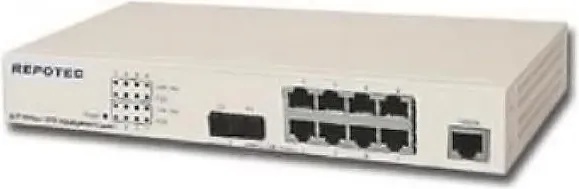

SWITCH RP-1708FC/8P 100MB+1 FX
REPOTEC RP-1708FC Type
8-P Ethernet + 100FX (MM) Managed Switch

Standards
IEEE 802.3 (10BaseT Ethernet), IEEE 802.3u IEEE 802.1D, 802.1P, 802.1Q, 802.1x

Filter & Forwarding Rate
Full line speed

Transmission method
Store-and-forward

Packet Buffer
256K Bytes

MAC Table Size
4K

Max. Packet Size
1536 bytes

Flow Control
Back pressure for Half Duplex, IEEE 802.3x for Full Duplex

Management
Out-band: Console (Command Line Interface)
In-band: SNMP/Telnet/HTTP

SNMP Agent
Version I
Supports MIB II (Interface), Bridge MIB, Etherlike MIB, Private MIB

VLAN
802.1Q VLAN, 256 co-current groups maximum from eight active VLAN ID blocks

QoS
Four priority queues per port, Port-based & 802.1p tagged-based

Spanning Tree
Supports IEEE 802.1D

Port Mirror
For Engress/Ingress packets, support DA/SA filtering function

Static MAC ID Access Limit
Limit on port

IEEE 802.1x
Supports Transparent and Authentication modes

Rate Control
Limit on port for both Ingress/Engress traffic from 64Kbps to 100Mbps

IP Multicast
Supports IGMP Snooping function

Software Upgrade
Out-band: Xmodem
In-band: TFTP

LED Indicators
Per Port: Link/Activity(Speed), FDX
Per Device: Power

Power Supply
AC 100 ~ 240V, 50/60Hz, 6.5W max

Environment
Operating Temperature: 0°C ~ 50°C
Humidity: 5% ~ 95%

Dimension
250 * 117 * 37 mm www. repotec. com
Repotec Managed Ethernet Switches The specification and pictures are subject to change without notice.
 .
