Маркирани оферти за Teltonika TSW202 Как са подбрани?
Маркирани оферти
Teltonika NETWORKS TSW202 Layer2/L3 Managed PoE+ and SFP Eth (TSW202000000)
112,75 €
+ 3,20 € за доставка
В наличност
Още оферти за Teltonika TSW202
Още оферти
TELTONIKA NETWORKS TSW202 Layer2/L3 Managed PoE+ and SFP Ethernet switch (TSW202000000)
112,92 €
В наличност
Teltonika Networks Суич TELTONIKA NETWORKS TSW202 PoE+ Ethernet Switch (TSW202000000)
117,56 €
В наличност
teltonika_networks TELTONIKA NETWORKS TSW202, управляем, 8 x 10/100/1000 (PoE+) + 2 x SFP, 240 W, монтаж на DIN шина, черен (TSW202000000)
119,90 €
Информация в магазина
Teltonika Суич Teltonika - TSW202, 8-портов, PoE+, черен (TSW202000000)
142,00 €
Безплатна доставка
Доставка: до 3 дни
Teltonika TSW202 Управляем L2 Gigabit Ethernet (10/100/1000) Захранване по Ethernet (PoE) Алуминий, Син (TSW202000000)
146,40 €
+ 9,92 € за доставка
Информация в магазина
Още подобни стоки от най-популярните
Други стоки марка Teltonika: Teltonika Суич, комутатор
Описание, детайли - Teltonika TSW202
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 112,75 €
Описание
| PoE съвместимост | Да |
| Управляем | Да |
Виждате грешка в описанието или таблицата? Сигнализирайте ни!

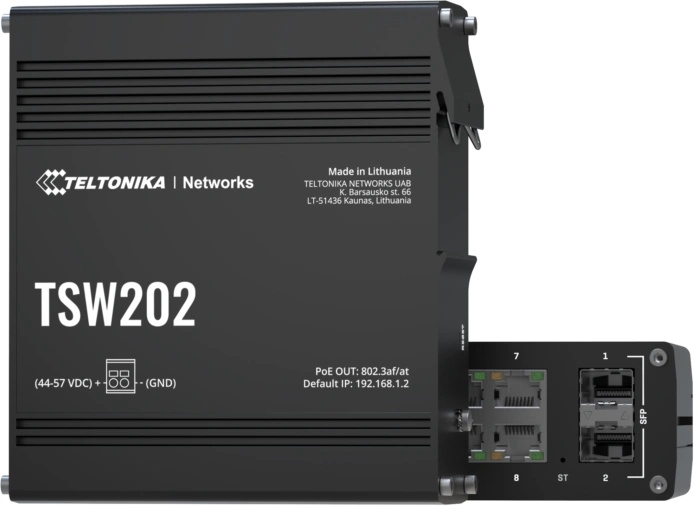

TELTONIKA NETWORKSTSW202 Layer2/L3 Managed PoE+ and SFP Ethernet switch
Manufacturer
TELTONIKA NETWORKS
Manufacturer Part No
TSW202000000
Marketing Description
TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30W of power each.
Product Features
Managed switchL2 with additional L3 features for enhanced management and control. POE+ and SFP8 x port PoE+ switch with 2 x SFP ports for fiber optic communication. Profinet and moreSupports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP.
General
Device Type
Switch - 8 ports - Managed
Enclosure Type
DIN rail mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
240 W
Performance
Non-blocking bandwidth: 20 Gbps
Capacity
Packet buffer size: 512 KB
MAC Address Table Size
8K entries
Jumbo Frame Support
10000 bytes
Remote Management Protocol
SNMP 2, SNMP 3
Features
Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP prioritisation, ToS, SP, WFQ, WRR, traffic shaping, FOTA
Compliant Standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at
RAM
128 MB DDR3 SDRAM
Flash Memory
16 MB
Status Indicators
Power, AUX, port status
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 30 W
2 x LAN SFP
Power
Voltage Required
DC 7 - 57 V
Miscellaneous
Compliant Standards
IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS 62368-1:2022, IEC 62368-1:2018
Dimensions & Weight
Width
13.2 cm
Depth
12.22 cm
Height
4.42 cm
Weight
610 g
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
Technical data provided by third party. We assume no liability for errors within these data.
Продукт известен още и като TSW 202
Manufacturer
TELTONIKA NETWORKS
Manufacturer Part No
TSW202000000
Marketing Description
TSW202 is the Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports providing 30W of power each.
Product Features
Managed switchL2 with additional L3 features for enhanced management and control. POE+ and SFP8 x port PoE+ switch with 2 x SFP ports for fiber optic communication. Profinet and moreSupports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP.
General
Device Type
Switch - 8 ports - Managed
Enclosure Type
DIN rail mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
240 W
Performance
Non-blocking bandwidth: 20 Gbps
Capacity
Packet buffer size: 512 KB
MAC Address Table Size
8K entries
Jumbo Frame Support
10000 bytes
Remote Management Protocol
SNMP 2, SNMP 3
Features
Auto-uplink (auto MDI/MDI-X), PROFINET, EtherNet/IP enabled, LLDP support, loop protection, VLAN support, STP support, RSTP support, DHCP server, DHCP client, port isolation, port mirroring, static routing, DHCPv6 client, port-based priority, DSCP prioritisation, ToS, SP, WFQ, WRR, traffic shaping, FOTA
Compliant Standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at
RAM
128 MB DDR3 SDRAM
Flash Memory
16 MB
Status Indicators
Power, AUX, port status
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 30 W
2 x LAN SFP
Power
Voltage Required
DC 7 - 57 V
Miscellaneous
Compliant Standards
IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN IEC 62368-1:2020+A11:2020, AS/NZS 62368-1:2022, IEC 62368-1:2018
Dimensions & Weight
Width
13.2 cm
Depth
12.22 cm
Height
4.42 cm
Weight
610 g
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
Technical data provided by third party. We assume no liability for errors within these data.
Продукт известен още и като TSW 202
