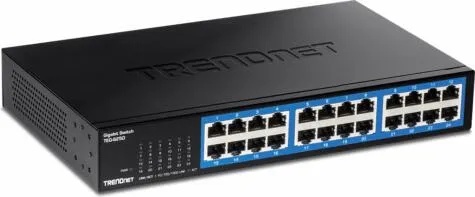

The 24-Port Gigabit Desktop Switch, model TEG-S25D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.   Gigabit Speeds Gigabit ports provide high-speed network connections to 24 devices, and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.   Housing Design With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations.   Fanless Fanless design lowers energy consumption and reduces distracting operating noise.   Plug and Play Simply power up the switch and plug in connected devices  Switching Capacity 48Gbps switching capacity  Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance  Specifications Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab

Device Interface

• 24x Gigabit ports
• LED indicators

Data Transfer Rate

• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)

Performance

• Switching Capacity: 48Gbps
• RAM Buffer: 512KB
• MAC Address Table: 8K entries
• Forwarding Rate: 35.71Mpps (64-byte packet size)
• Jumbo Frames: 9KB

Special Features

• Rack Mountable

Power

• Internal power supply: 100 – 240V AC, 50/60 Hz, 1A
• Max. Consumption: 14.24W

Fan/Acoustics

• Fanless design

MTBF

• 364,460 hours

Operating Temperature

• 0° – 40° C (32° – 104° F)

Operating Humidity

• Max. 90% non-condensing

Dimensions (L x W x H)

• 267 x 162 x 42mm (10.51 x 6.38 x 1.65 in. )

Weight

• 1.3kg (2.93 lbs. )

Certifications

• FCC
• CE
• ETL
