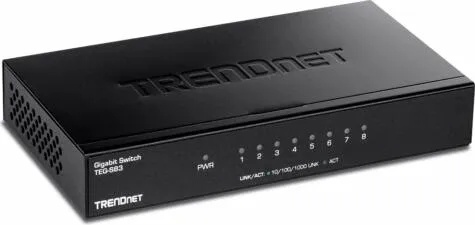

The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.   Gigabit Speeds Gigabit ports provide high-speed network connections to eight devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.   Compact Design With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.   Fanless Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.   Switching Capacity 16Gbps switching capacity  Jumbo Frame This gigabit Ethernet switch sends larger packets, or Jumbo Frames (up to 9KB), for increased performance  Housi ng Design Compact and lightweight metal housing  Specifications Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab

Device Interface

• 8 x Gigabit ports
• LED indicators

Data Transfer Rate

• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)

Performance

• Switching Capacity: 16Gbps
• RAM Buffer: 192KB
• MAC Address Table: 4K entries
• Forwarding Rate: 11.9Mpps (64-byte packet size)
• Jumbo Frames: 9KB

Power

• Input: 100 – 240V AC, 50/60 Hz, 0.2A
• Output: 5 V DC, 1A external power adapter
• Max. Consumption: 3.2W

Fan/Acoustics

• Fanless design

MTBF

• 1,451, 740 hours

Operating Temperature

• 0° – 40° C (32° – 104° F)

Operating Humidity

• Max. 90% non-condensing

Dimensions (L x W x H)

• 160 x 25 x 109mm (6.29 x 0.98 x 4.29 in. )

Weight

• 414g (14.6 oz. )

Certifications

• FCC
• CE

Продукт известен още и като TEG S 83, TEGS83, TEG S83, TEG-S 83
