Technical specifications

CPU

Supports AMD Socket AM5 Ryzen 7000 Series Processors



Chipset

AMD A620



Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)

Max. capacity of system memory: 128GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



BIOS

256Mb AMI UEFI Legal BIOS with GUI support



Graphics

Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz



Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio



LAN

Gigabit LAN 10/100/1000 Mb/s

Realtek 8111H



Slots

CPU:

1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

* Supports NVMe SSD as boot disks

15μ Gold Contact in VGA PCIe Slot (PCIE1)



Storage

CPU:

1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *

1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset :

1 x M. 2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x2 (16 Gb/s) mode *

4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks



RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M. 2 NVMe storage devices

* * Requires additional M. 2 NVMe expansion cards to support RAID 10



USB

2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)

5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection



Connector

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x RGB LED Header *

3 x Addressable LED Headers * *

1 x CPU Fan Connector (4-pin) * * *

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * * * *

3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * * * * *

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip * * Support in total up to 5V/3A, 15W LED Strip * * * CPU_FAN1 supports the fan power up to 1A (12W).

* * * * CPU_FAN2/WP supports the fan power up to 2A (24W). *

* * * * CHA_FAN1~3/WP support the fan power up to 2A (24W). *

* * * * CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

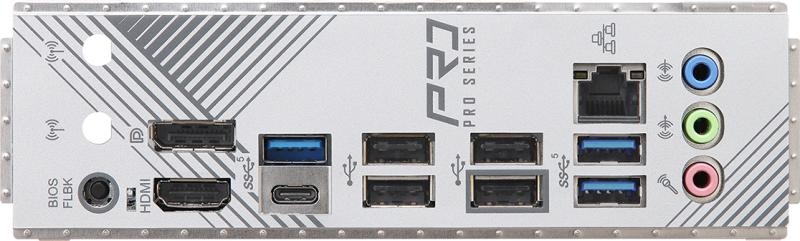

Rear Panel I/O

2 x Antenna Mounting Points

1 x HDMI Port

1 x DisplayPort 1.4

3 x USB 3.2 Gen1 Type-A Ports

1 x USB 3.2 Gen1 Type-C Port

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone



Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
