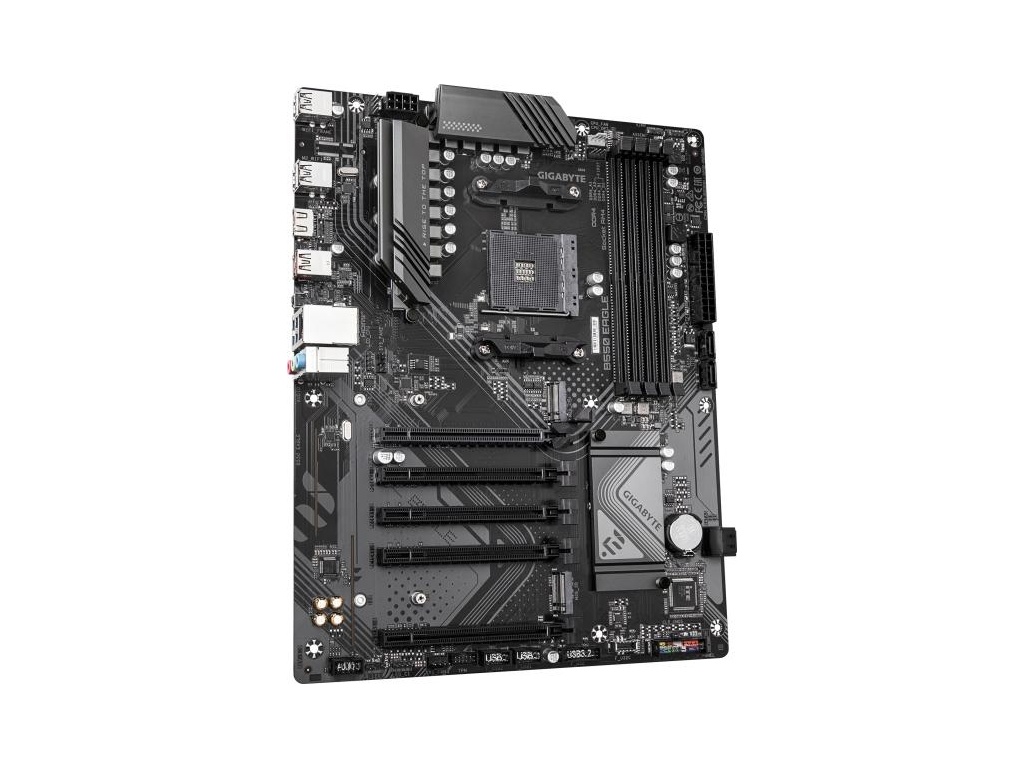

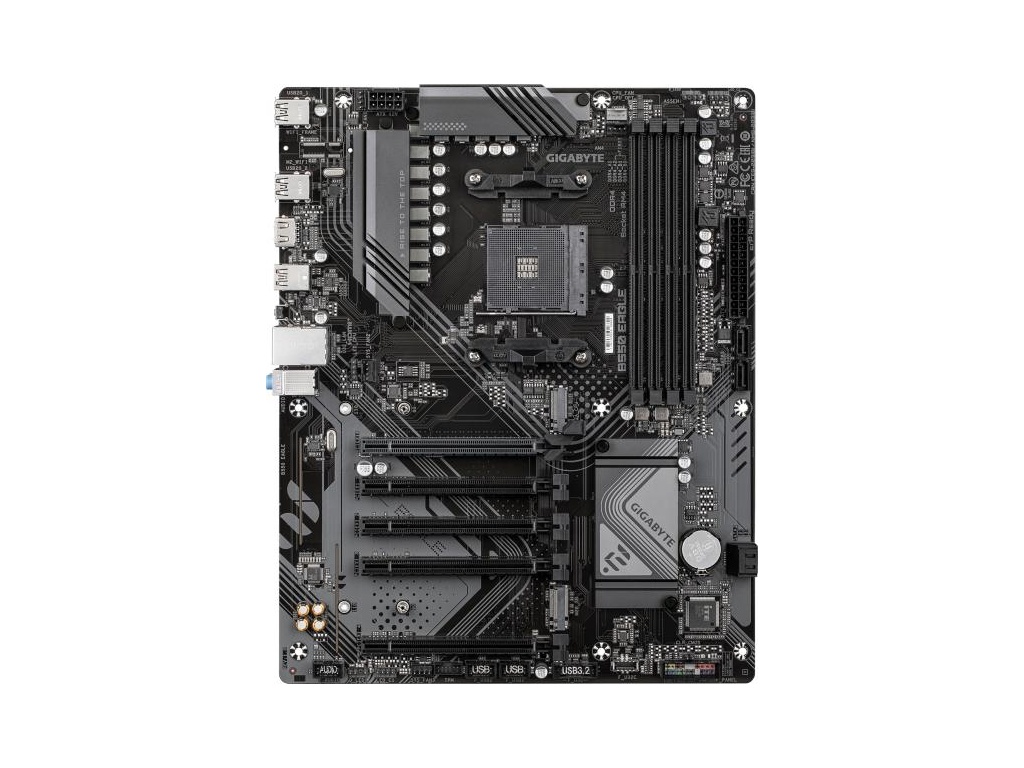

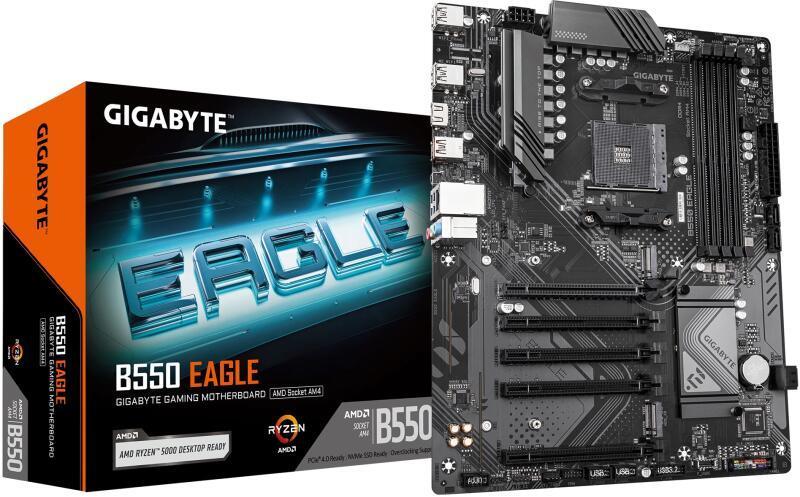

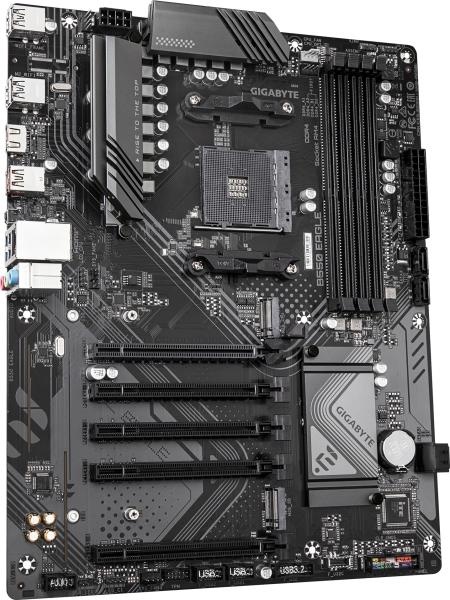

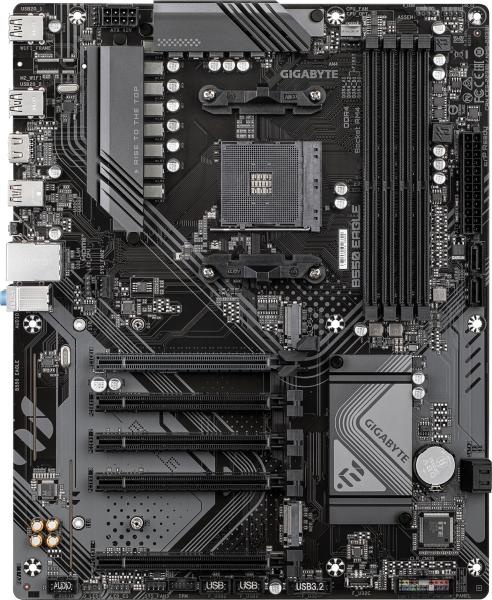

GB B550 EAGLE / AM4

USB: CPU:;- AMD Ryzen 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel;- AMD Ryzen 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 2 x USB 3.2 Gen 1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 4 x USB 2.0/1.1 ports available through the internal USB headers;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel
Manufacturer: GIGABYTE
Memory type: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Features: Support for APP Center;* Available applications in APP Center may vary by motherboard model. ;Supported functions of each application may also vary depending on motherboard specifications. ;- @BIOS;- EasyTune;- RGB Fusion;- Smart Backup;- System Information Viewer;Support for Q-Flash Plus;Support for Q-Flash
CPU's supported: AMD Socket AM4, support for:;AMD Ryzen 5000 G-Series Processors/;AMD Ryzen 5000 Series Processors/;AMD Ryzen 4000 G-Series Processors/;AMD Ryzen 3000 G-Series Processors/;AMD Ryzen 3000 Series Processors
Interface: 1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;- AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs;- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs;1 x M. 2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Chipset: AMD B550
Graphics: Integrated Graphics Processor with AMD Radeon Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR. ;** Support for native HDMI 2.1 TMDS compatible ports. ;(Graphics specifications may vary depending on CPU support. );Maximum shared memory of 16 GB
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset:;- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
I/O: iTE® I/O Controller Chip

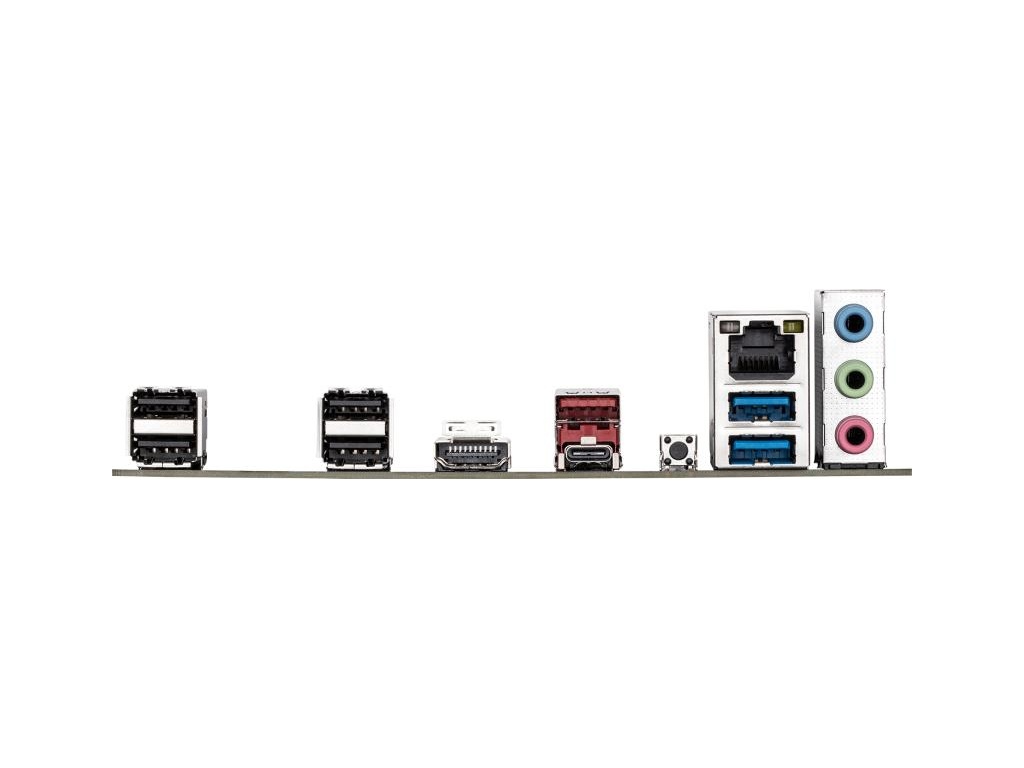

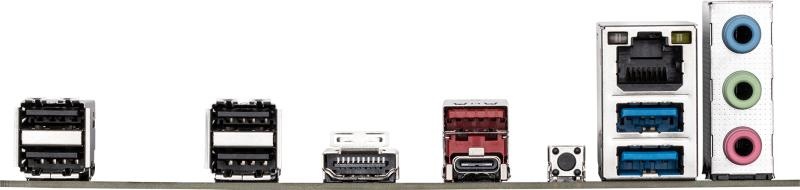

Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;2 x addressable LED strip headers;2 x RGB LED strip headers;1 x CPU cooler LED strip/RGB LED strip header;2 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);1 x Clear CMOS jumper;Back Panel Connectors;4 x USB 2.0/1.1 ports;1 x HDMI port (Note);1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red);1 x USB Type-C® port, with USB 3.2 Gen 1 support;1 x Q-Flash Plus button;1 x RJ-45 port;2 x USB 3.2 Gen 1 ports;3 x audio jacks
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS: 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit
 .
MAIN BOARD
Mainboard

Продукт известен още и като B 550 EAGLE, B550EAGLE
