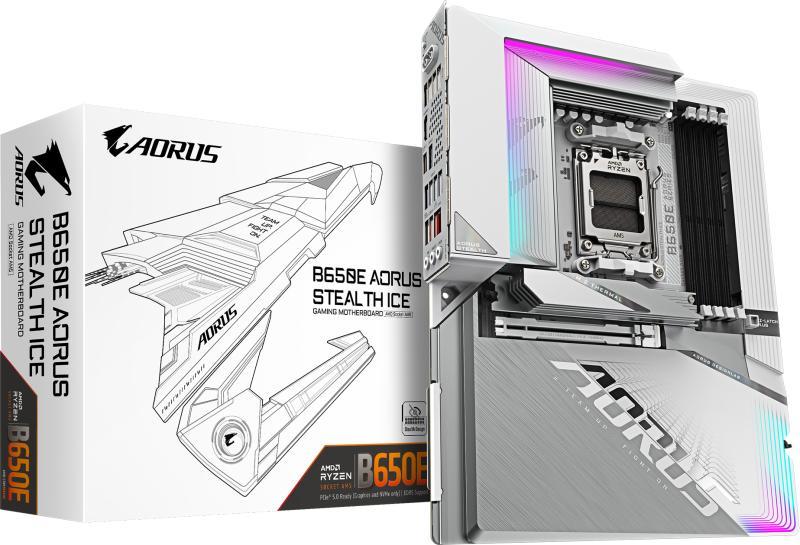

GB B650E A STAEALTH ICE / AM5

USB: CPU:;- 1 x USB Type-C® port (Note 1) on the back panel;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;CPU + USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports available through the internal USB headers;Chipset+USB 3.2 Gen 1 Hub:;- 4 x USB 3.2 Gen 1 ports on the back panel
Manufacturer: GIGABYTE
Wireless: MediaTek Wi-Fi 7 MT7925;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard
Memory type: Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Features: Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash Plus
CPU's supported: AMD Socket AM5, support for:;AMD Ryzen 9000 Series Processors/;AMD Ryzen 8000 Series Processors/;AMD Ryzen 7000 Series Processors
Chipset: AMD B650
Bluetooth: 5.4
Graphics: Integrated Graphics Processor with AMD Radeon Graphics support:;- 1 x USB Type-C® port (Note) with DisplayPort video output, supporting a maximum resolution of 3840x2160@144 Hz. ;* Support for DisplayPort 1.4 version and HDR. ;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3. ;** Support for native HDMI 2.1 TMDS compatible ports. ;- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode;- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage: 1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:;- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;- AMD Ryzen 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0x4/x2 SSDs;1 x M. 2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;- AMD Ryzen 9000/ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M. 2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
I/O: iTE® I/O Controller Chip
Connectors: Internal I/O Connectors;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;3 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x HDMI port (Note2);1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x Q-Flash Plus button;2 x SMA antenna connectors (2T2R);1 x HDMI port;1 x USB Type-C® port (Note 2) (DisplayPort (Note 1));2 x USB 3.2 Gen 2 Type-A ports (red);5 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
OS: Support for Windows 11 64-bit
 .
MAIN BOARD
Mainboard
