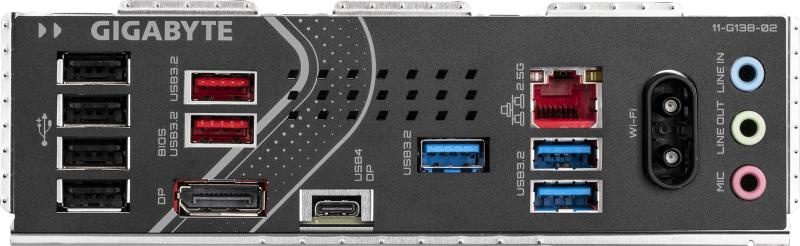

Product SpecificationsParameter NameParameter OptionProduct TagVID-03Product ID71834UID64886ManufacturerGIGABYTEPart NumberZ890 EAGLE WIFI7 / Z890 A EAGLE WIFI7 1.0USBCPU:;- 1 x USB4® USB Type-C® port on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);Chipset+2 USB 2.0 Hubs:;- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)ManufacturerGIGABYTEWirelessMedi aTek Wi-Fi 7 MT7925 (PCB rev. 1.0);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment. )Memory typeSupport for DDR5 9200(O. C) / 9066(O. C) / 8933(O. C) / 8800(O. C) / 8600(O. C) / 8400(O. C) /8266(O. C) / 8200(O. C) / 8000(O. C) / 7950(O. C) / 7900(O. C) / 7800(O. C) / 7600(O. C. ) / 7400(O. C. ) / 7200(O. C. ) / 7000(O. C. ) / 6800(O. C. ) / 6600(O. C. ) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. ;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;Support CUDIMM memory moduleFeaturesSupport for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart BackupCPU's supportedLGA1851 socket: Support for Intel® Core Ultra Processors;L3 cache varies with CPUChipsetIntel® Z890 Express ChipsetBluetooth5.4GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:;- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;(Graphics specifications may vary depending on CPU support. )Expansion SlotsCPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset:;- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)StorageCPU:;- 1 x M. 2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M. 2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);Chipset:;- 1 x M. 2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);- 1 x M. 2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesI/OiTE® I/O Controller ChipConnectorsInternal I/O Connectors: 1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only);1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x power button;1 x Q-Flash Plus button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort (Note));2 x USB 3.2 Gen 2 Type-A ports (red);3 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x DisplayPort (Note);2 x antenna connectors (2T2R);1 x RJ-45 port;3 x audio jacksAudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channelLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form FactorATX Form Factor; 30.5cm x 24.4cmOSSupport for Windows 11 64-bit

07-09-2025 08:30:11 PM

Продукт известен още и като Z 890 EAGLE WIFI 7, Z890EAGLEWIFI7, Z 890 EAGLE WIFI7, Z890 EAGLE WIFI 7
