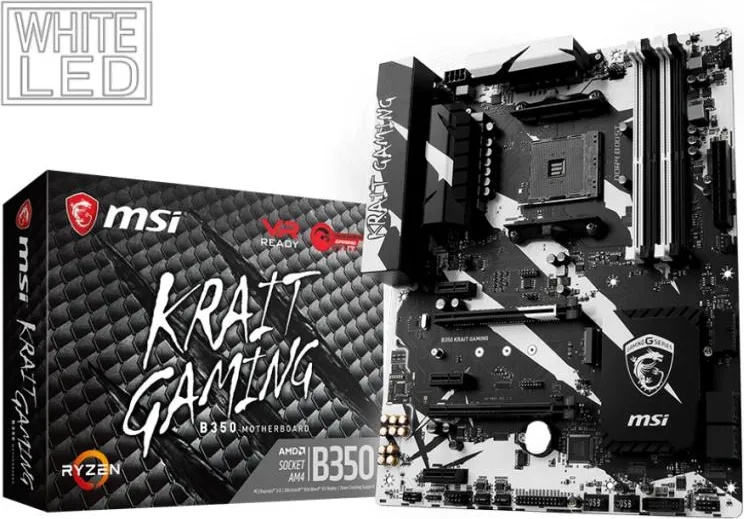

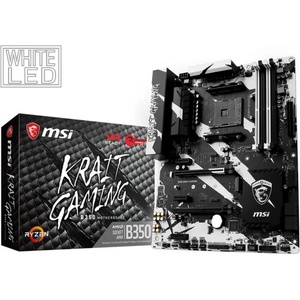

MSI B350 KRAIT GAMING

- Supports AMD RYZEN Series processors and 7th Gen A-series / Athlon Processors for socket AM4
- Supports DDR4-3200+(OC) Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- VR Ready: Best virtual reality game experience without latency
- Lightning Fast Game experience: Turbo M. 2, Lightning USB 3.1 Gen2
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- GAMING LAN with LAN Protect: The best online gaming experience with lowest latency and bandwidth management
- Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
- MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire
- Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster
- EZ Debug LED: Easiest way to troubleshoot
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
- GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
- WHQL certified for Windows 10

CPU

Supports AMD RYZEN series processors and 7th Gen A-series/ Athlon processors for Socket AM4

Chipset

AMD B350 Chipset

Main Memory

4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
* Please refer www. msi. com for more information on compatible memory. 7th Gen A-series/ Athlon processors support a maximum of 2400 MHz.

Slots

1 x PCIe 3.0 x16 slots (PCIE_2)
- RYZEN series processors support x16, x8 mode
- 7th Gen A-series/ Athlon processors support x8 mode

1 x PCIe 2.0 x16 slot (PCIE_4, supports x4 mode)*
3 x PCIe 2.0 x1 slots
* PCI_E4 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.

Onboard Graphics

1 DVI-D port, supporting a maximum resolution of 1920x1200@60Hz, 1600x1200@60Hz*
1 HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz*
* Only support when using a 7th Gen A-series/ Athlon processors
* Maximum shared memory of 2048 MB

Multi-GPU

Supports 2-Way AMD CrossFire Technology
- RYZEN series processors support x16/x4 mode
- 7th Gen A-series/ Athlon processors support x8/x4 mode

Storage

AMD B350 Chipset
2x SATA 6Gb/s ports (SATA1, SATA2)
-Supports RAID 0 and RAID 1
1x M. 2 port (Key M)
- Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

ASMedia ASM1061
2x SATA 6Gb/s ports (SATA3, SATA4)

USB

ASMedia ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

AMD B350 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD CPU
- 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek ALC892 Codec
- 7.1-Channel High Definition Audio

LAN

1 x Realtek 8111H Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin PUMP fan connector (supports up to 2A)
- 4 x 4-pin system fan connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x HDMI 1.4 port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 6 x audio jacks

Dimension

12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
