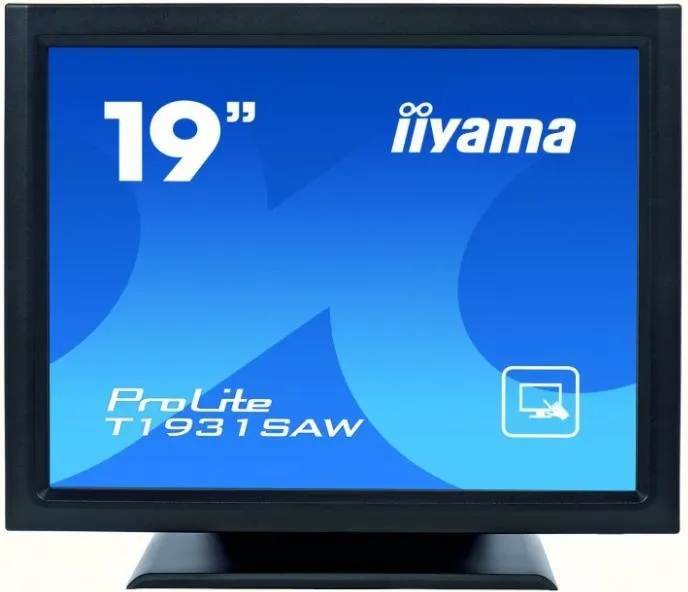

Iiyama PROLITE T1931SAW-B5
19 monitor with Surface Acoustic Wave touch technology

The ProLite T1931SAW-B5 uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1931SAW-B5 touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality and Entertainment, Control rooms, Education, Training and many others.

TOUCH TECHNOLOGY - SURFACE ACOUSTIC WAVE
Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed and a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast and colour accuracy). It is also scratch-resistant technology and therefore ideal for use in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.

DISPLAY CHARACTERISTICS
Diagonal 19", 48cm
Panel TN LED
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Brightness 250 cd/m2 typical
Brightness 230 cd/m2 with touch
Static contrast 1000:1 with touch
Light transmittance 92%
Response time 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 31 - 80KHz
Vertical Sync 50 - 75Hz
Viewable area W x H 376 x 301mm, 14.8 x 11.9"
Pixel pitch 0.294mm
Bezel colour and finish black, matte

TOUCH
Touch technology SAW
Touch points 1
Touch method finger
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 1W
HDCP yes

FEATURES
Impact testing IP54 (front)
OSD key lock yes

GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock prepared
Plug&Play DDC2B

MECHANICAL
Tilt angle 90° up; 5° down
VESA mounting 100 x 100mm
Cable management system yes

ACCESSORIES INCLUDED
Cables power, USB, HDMI, Audio, DP
Guides quick start guide, safety guide
Other Touch Panel Driver Disk (CD-ROM)
Cable cover yes

POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 3W stand by

SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, VCCI, GOST

DIMENSIONS / WEIGHT
Product dimensions W x H x D 432 x 390 x 218mm
Weight (without box) 6.6kg
