Design
Edge to edge glass, Open Frame

Diagonal
15.6", 39.5cm

Panel
IPS Panel Technology LED

Native resolution
1920 x 1080 @60Hz (2.1 megapixel)

Aspect ratio
16:9

Brightness
450 cd/m2 typical

Brightness
405 cd/m2 with touch

Static contrast
700:1 with touch

Light transmittance
90%

Response time (GTG)
25ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.2mln (6bit + Hi-FRC)

Horizontal Sync
30 - 84kHz

Viewable area W x H
344.2 x 193.5mm, 13.6 x 7.6"

Pixel pitch
0.179mm

Bezel colour and finish
black, matte



Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

Palm rejection
yes

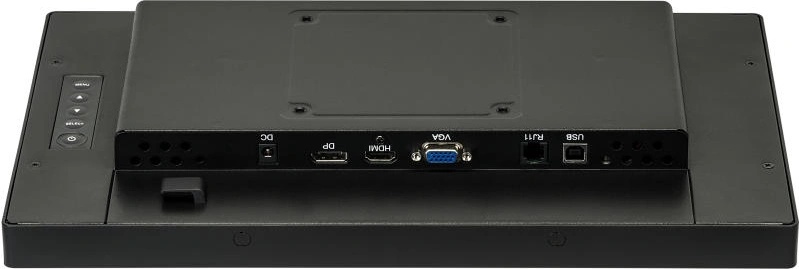

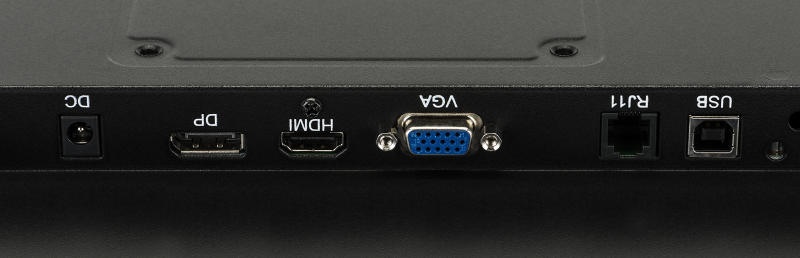

Analog signal input
VGA x1

Digital signal input
HDMI x1

DisplayPort x1

HDCP
yes



Extra
anti-fingerprint coating, touch through-glass

Glass thickness
2.4mm

Glass hardness
7H

Water and dust protection
IP65 (front)

OSD key lock
yes

OSD languages
EN, DE, FR, ES, IT, CN, JP

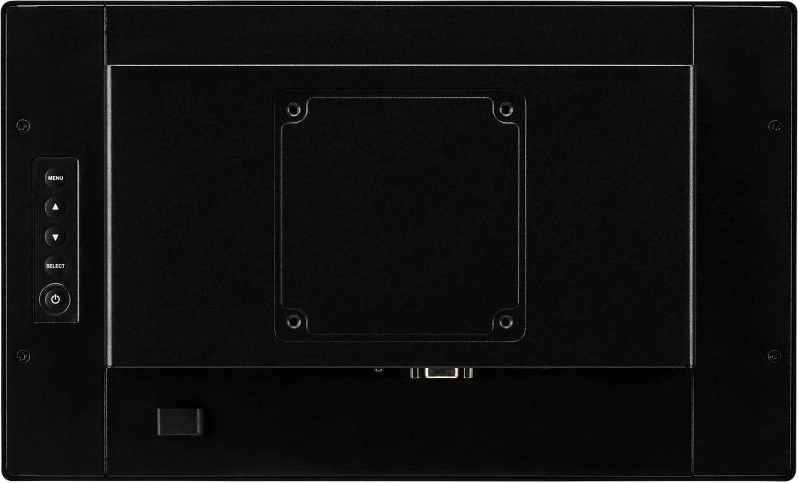

Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

User controls
picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp. , sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)

Plug&Play
DDC2B
