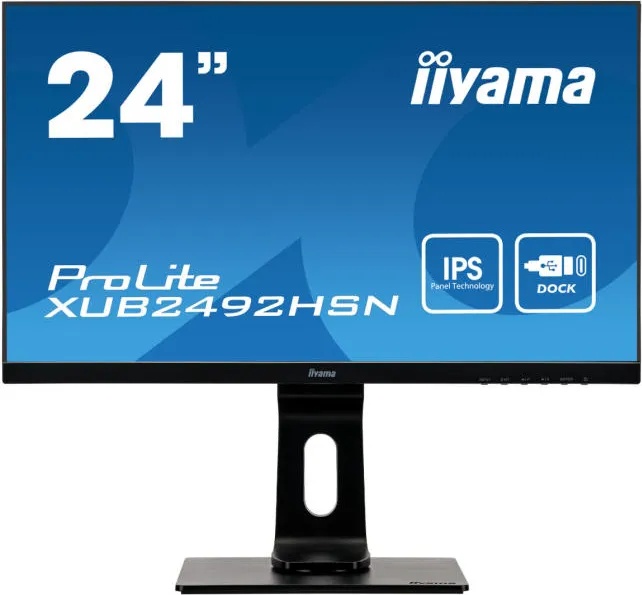

IIYAMA XUB2492HSN-B1

USB-C DOCK

The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.

*Functions vary depending on your laptop USB-C support.





IPS TECHNOLOGY

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

HAS + PIVOT (ROTATION BOTH SIDES)

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

FLICKER-FREE + BLUE LIGHT

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up .



Спецификации:



Design ultra slim

Diagonal: 23.8", 60.5cm

Panel: IPS Panel Technology LED, matte finish

Native resolution: 1920 x 1080 @75Hz (2.1 megapixel Full HD)

Aspect ratio: 16:9

Brightness: 250 cd/m2 typical

Static contrast: 1000:1 typical

Advanced contrast: 80M:1

Response time (GTG): 4ms

Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support: 16.7mln (sRGB: 99%; NTSC: 72%)

Horizontal Sync: 30 - 85kHz

Vertical Sync: 55 - 75Hz

Viewable area W x H: 527 x 296.5mm, 20.7 x 11.7"

Pixel pitch: 0.275mm

Colour: matte, black



INTERFACES / CONNECTORS / CONTROLS

Signal input

HDMI x1 (1920 x 1080@ 75Hz)

DisplayPort x1 (1920 x 1080@ 75Hz)

Signal output:

DisplayPort x1 (Daisy Chain MST max. 1920 x 1080)

USB HUB x2 (v. 3.0)

USB C dock: x1 (Power delivery 65W, LAN, DP out, USB 3.0)

HDCP: yes

Headphone connector: yes



FEATURES

Blue light reducer: yes

Flicker free: yes

OSD languages: EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons Power, Menu/ Select, Up/ Volume, Down/ ECO, Exit, Input

User controls picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD), colour settings (colour temp. , user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous (sharp and soft, video mode adjust, opening logo, USB BC, MST, information), input select, audio settings (volume, mute)

Speakers: 2 x 2W

Convenience: Kensington-lock prepared, DDC2B



MECHANICAL

Display position adjustments: height, swivel, tilt, pivot (rotation both sides)

Height adjustment: 130mm

Rotation (PIVOT function): 90°

Swivel stand: 90°; 45° left; 45° right

Tilt angle: 22° up; 5° down

VESA mounting: 100 x 100mm

Cable management system yes

Operation temperature range: 5°C - 35°C



ACCESSORIES INCLUDED

Cables power (1.5m), HDMI (1.5m)

USB-C 1m (on)

Other quick start guide, safety guide



POWER MANAGEMENT

Power supply unit: internal

Power supply: AC 100 - 240V, 50/60Hz

Power usage: 19W typical, 0.5W stand by, 0.5W off mode



SUSTAINABILITY

Regulations: TCO, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH

Energy efficiency class A+

Other: REACH SVHC above 0.1%: Lead



DIMENSIONS / WEIGHT

Product dimensions W x H x D: 539.5 x 366.5 (496.5) x 210mm

Box dimensions W x H x D: 688 x 401 x 206mm

Weight (without box): 5.4kg






Продукт известен още и като ProLite XUB 2492 HSN, ProLiteXUB2492HSN, ProLite XUB2492 HSN
