Acer MR.JYX11.001 / NWL-2311

Acer S1387n

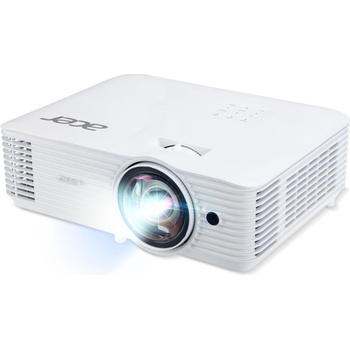

The Acer S1387n is a WXGA short-throw projector for classrooms, offering vivid close-range projection, intelligent scene optimization, and centralized LAN control for easier lesson delivery.

Short-throw Projection

Place the projector at a short distance from the screen to still be able to see a bigger picture. For example if it is placed 90cm away from the screen it could get an 80" projection.

4,000 Lumens Brightness

See crystal-clear, vibrant images from a distance in daylight or medium to large rooms with up to 4,000 lumens of brightness.

WXGA Resolution

With 1280x800 WXGA resolution, project in confidence with sharper, more detailed images and video than you have come to expect from standard projectors.

Acer ColorBoost3D

Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D technology.

Acer ColorSafe II

Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.

Remote LAN Management

Manage multiple projectors remotely over RJ45 LAN, enabling centralized monitoring and configuration using standard control protocols for IT environments.

Dual HDMI Ports

Dual HDMI ports let you connect multiple devices at once, so you can switch sources easily via the projector’s menu—no more unplugging and reconnecting.

Integrated Speakers

What you hear will be just as good as what you see with the powerful built-in speakers.

Environmentally Friendly Acer EcoProjection

Reduce power consumption by up to 70% and extend your lamp life to up to 15,000 hours with Acer EcoProjection

Specification DetailsProjection System DLPLight Source Lamp OSRAM 240 W E30.1Light Source Life 5000 hours (Standard), 10000 hours (ECO)Native Resolution 1280 × 800Maximum Resolution 1920 × 1200Brightness 4000 ANSI Lumens (Standard), 3200 ANSI Lumens (ECO), compliant with ISO 21118Aspect Ratio 16:10 (Native), 4:3 (Supported), 16:9 (Supported)Contrast Ratio 20,000:1Image Size 36" (91.4 cm) ~ 300" (762 cm)Keystone Correction 4-corner correction, Horizontal ±15° (Manual), Vertical ±15° (Manual)Throw Ratio 0.52 (2209.8 mm @ 980 mm)Zoom Ratio 1xDigital Zoom 0.7x – 1.0xLens F = f/2.8, f = 7.51 mm, Manual FocusProjection Offset (Half-Height) 125%Projection Mode Front, Rear, Front Ceiling, Rear CeilingVertical Sync Rate 24 ~ 120 HzHorizontal Sync Rate 15 ~ 100 kHzHDMI HDMI 1.4b (HDCP 1.4) ×2VGA Out ×1, D-subComponent ×1 RCAVideo ×1 RCAHDBaseT ×1, RJ45Audio In ×1, 3.5 mm mini jackAudio Out ×1, 3.5 mm mini jackS/PDIF —USB Type-A Out ×1, DC Out (5V/1A)Speaker ×1, 16 WRS232 ×1, D-subUSB Ctrl USB Type-A ×1 (shared output port)LAN Ctrl ×1, RJ453D Support DLP 3D Ready, HDMI 3D Ready, 144Hz 24p 3DSecurity Security Bar, Kensington LockInput Lag 16.7 ms @ 120 HzPortrait Operation No360° Operation NoPower Supply AC input 100 ~ 240VPower Consumption 285 W (Standard), 210 W (ECO), 0.5 W (Standby)Installation Ceiling MountableDimensions (W × D × H) 313 × 236 × 113.7 mmWeight 3.1 kg (6.8 lb)
