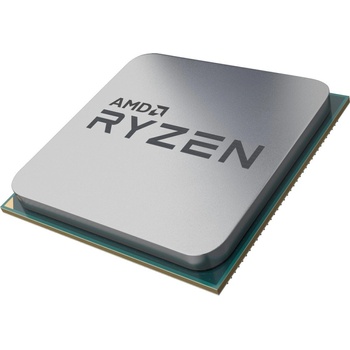

AMD Ryzen 3 2200G 4-Core 3.5GHz AM4 Tray

General information

Type
CPU / Microprocessor

Market segment
Desktop

Family
AMD Ryzen 3

Model number
2200G

CPU part numbers

YD2200C5M4MFB is an OEM/tray microprocessor

Frequency
3.5 GHz / 3500 MHz

Maximum turbo frequency
3.7 GHz / 3700 MHz

Package
1331-pin lidded micro-PGA package

Socket
Socket AM4

Size
1.57" x 1.57" / 4cm x 4cm

Introduction date
January 8, 2018 (announcement)
February 12, 2018 (availability)

Price at introduction
$99

Architecture / Microarchitecture

Instruction set
x86

Microarchitecture
Zen

Processor core
Raven Ridge

Core stepping
B0?

CPUID
810F10

Manufacturing process
0.014 micron FinFET process

Data width
64 bit

The number of CPU cores
4

The number of threads
4

Floating Point Unit
Integrated

Level 1 cache size
4 x 64 KB 4-way set associative instruction caches
4 x 32 KB 8-way set associative write-back data caches

Level 2 cache size
4 x 512 KB 8-way set associative caches

Level 3 cache size
4 MB 16-way set associative shared cache

Cache latency
4 - 5 (L1 data cache / Int)
7 - 8 (L1 data cache / FP)
12 (L2 cache)
35 (L3 cache)

Multiprocessing
Uniprocessor

Extensions & Technologies

MMX instructions
Extensions to MMX
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
SSE4a
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
SHA / Secure Hash Algorithm extensions
AMD64 / AMD 64-bit technology
AMD-V / AMD Virtualization technology
Precision Boost

Security Features
EVP / Enhanced Virus Protection

Low power features
Pure Power

Integrated Graphics Processing Unit

GPU Type
Radeon Vega 8

Shader cores
512

Maximum frequency (MHz)
1100

Integrated peripherals / components

Display controller
DisplayPort / HDMI

Memory controller
Memory channels (total): 2
Supported memory: DDR4-2933

Other peripherals

PCI Express 3.0 interface (8 lanes)
Secure processor

Electrical / Thermal parameters

Minimum/Maximum operating temperature
0°C - 95°C

Thermal Design Power
65 Watt

Notes on AMD Ryzen 3 2200G

The processor has unlocked clock multiplier
Also available as an embedded processor
Boxed processor is shipped with Wraith Stealth 65W cooler
