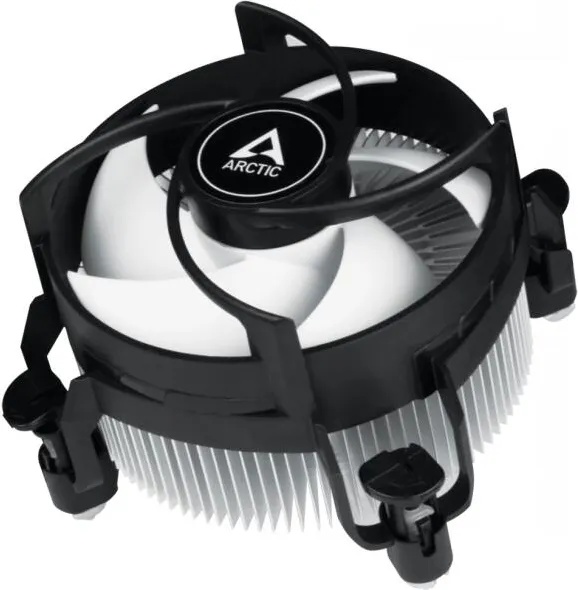

ARCTIC Alpine 17 (ACALP00040A)

Alpine 17

Compact Intel CPU Cooler



DESIGNED FOR INTEL ALDER LAKE

The Alpine 17 is exclusively compatible with Socket LGA1700 and Intel's latest Alder Lake CPUs.

FULL CONTROL WITH WIDE RPM RANGE

The Alpine 17 features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.

EASY AND TOOL-FREE INSTALLATION

With the MX-4 already pre-applied, the Alpine 17 can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.

HIGH-QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction inside the bearing is reduced and higher efficiency is achieved. In this way, less heat develops, there is less bearing noise and the fan life is extended.

IMPROVED COOLING PERFORMANCE THROUGH INNOVATIVE HEAT SINK DESIGN

The extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow and thus an increase in cooling performance.





Compatibillity

Intel Socket:
 LGA1700

Ram Clearance:
 unlimited

Heatsink

Heatsink:
 Radial

Material:
 Aluminum

Thermal paste:
 MX-4 Pre-applied

Fan

Fan Diameter:
 92 mm

Speed:
 100 - 2000 rpm

Bearing:
 Fluid Dynamic Bearing

Noise Level:
 0.3 Sone

Current/ Voltage:
 0.12 A

Anschluss:
 4-Pin PWM-Fan-Connector

Speed Control:
 Pulse Width Modulation - PWM

Dimensions & Weight

Length:
 95 mm

Width:
 95 mm

Height:
 77 mm

Weight:
 288 g
