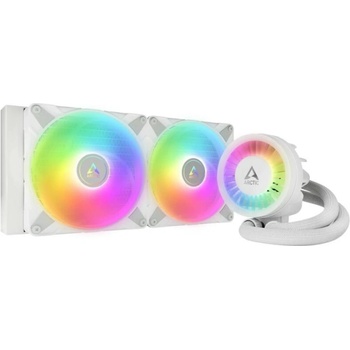

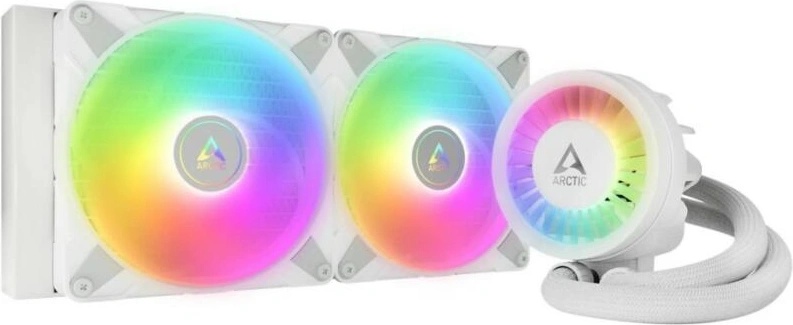

Liquid Freezer III 280 A-RGB White

Multi Compatible All-in-One CPU Water Cooler with A-RGB

Ready Out-of-the-Box - Easy Installation

The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.

Future-Proof Compatibility

The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.

Silent and Powerful VRM Fan

The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.

Contact Frame for Intel LGA1700 and LGA1851

Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.

Complete Control or Simple Control

Two connection cables - two control options:

Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.

All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.

Tech specs:
Compatibillity
Intel: 1700
AMD: AM5, AM4
PI | NNPI: 319 | 259
TIM: MX-6 (0.8 g)
Operating Ambient Temperature: 0—40 °C
Weight: 1765 g
LED Connector: 3-Pin A-RGB Connector
All-In-One Connector: 4-Pin PWM Connector
Splitt Connector: 3x 4-Pin PWM Connector

Pump
Pump: 800—2800 rpm (PWM controlled)
Current | Voltage: 0.35 A | 12 V DC
Cold Plate: Copper, Micro Skived Fins
Tube Length:450 mm

Tube Diameter:
Outer: 12.4 mm
Inner: 6.0 mm

Radiator
Material: Aluminium
Dimensions: 317 (L) x 138 (W) x 38 (H) mm

VRM Module
VRM Fan: 400—2500 rpm (PWM controlled)
Current | Voltage: 0.05 A | 12 V DC
LEDs: 12x A-RGB LEDs
Current | Voltage: 0.40 A | 5 V DC

Radiator Fans
General: 2x P14 PWM PST A-RGB
Speed: 200—1900 rpm
Air Flow: 69.90 cfm | 117.06 m3/h
Static Pressure: 2.0 mmH2O
Bearing: Fluid Dynamic Bearing
Current | Voltage: 0.17 A | 12 V DC
Cable Lenght: 40 mm

Connector: 4-Pin PWM Connector

RGB
LEDs: 12x A-RGB LEDs
Current | Voltage: 0.40 V | 5 V DC
Cable Lenght: 40 mm + 80 mm Splitter Cable
Connector: 3-Pin A-RGB Connector + 3-Pin Plug

ARCTIC Liquid Freezer III 280 ARGB (ACFRE00151A)
