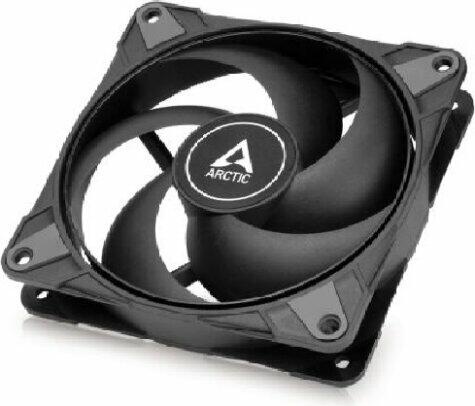

ARCTIC P14 Max (ACFAN00287A)

Extremely Wide Speed Range:
Building up on the success of the P14 PWM, the P14 Max extends the controllable speed to an impressively wide range from 400 rpm up to 2800 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.

Maximum Performance — Without Compromises:
The P14 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P14 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

0 dB Mode — Zero rpm:
The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P14 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Specifications

General
Dimensions:
140 (L) x 140 (W) x 27 (H) mm

Operating Ambient Temperature:
0–40 °C

Fan Specifications

Fan Speed:
400—2800 rpm (PWM controlled), 0 rpm below 3 % PWM

Airflow:
95,00 cfm | 161,40 m³/h

Static Pressure:
4,18 mmH2O

Fan Bearing:
Fluid Dynamic Bearing

Typical Voltage:
12 V DC

Start Up Voltage:
3.9 V DC

Current:
0.35 A

Cable Length:
400 mm

Connector:
4-Pin PWM Connector
