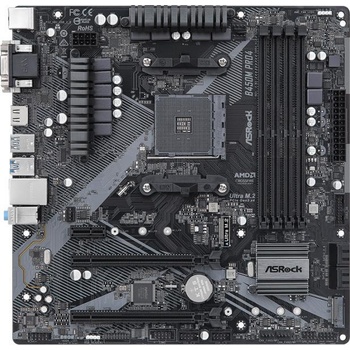

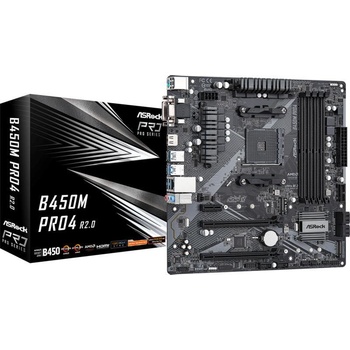

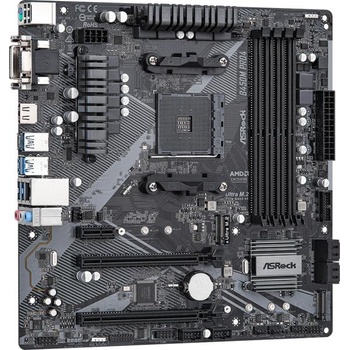

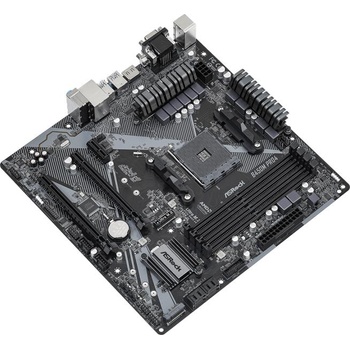

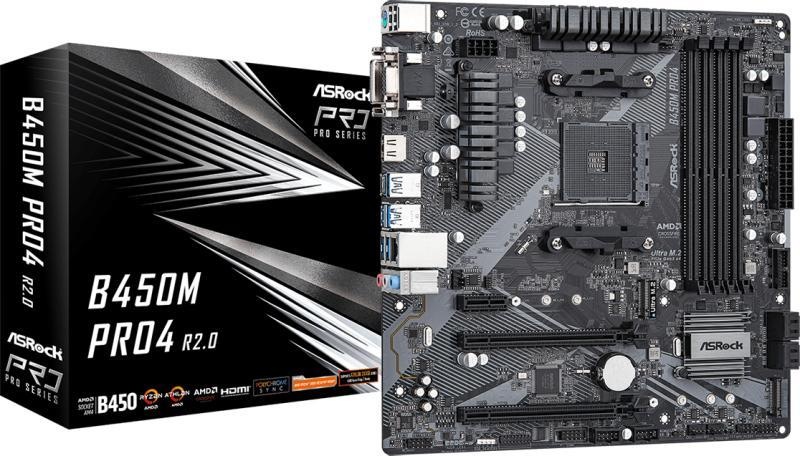

ASRock B450M Pro4 R2.0

DescriptionB450M Pro4 R2.0 10-PHASE POWER SUPPLY Unbreakable components and smooth power transfer to the CPU. Plus unparalleled overclocking capabilities and enhanced low-temperature performance for professional gamers. CREATE YOUR OWN BACKLIGHTING STYLE - POLYCHROME RGB This motherboard features integrated RGB headers and an addressable RGB header that allow compatible LED devices such as case fans, CPU fans, etc. to be mounted. Users can also synchronise certified Polychrome Sync RGB devices to create unique backlighting effects. Two M. 2 connectors for SSDs Two of the world's fastest M. 2 ports. One offers 32Gb/s PCIe Gen3 x4 connectivity, the other operates in SATA3 6Gb/s mode. Dual USB 3.2 Gen2 (Type-A + Type-C) This motherboard features integrated USB 3.2 Gen2 Type-A and Type-C ports on the rear I/O panel for support of next-generation USB 3.2 Gen2 devices with data transfer speeds of up to 10Gbps. 2 ounces of copper 57 grams of copper in the inner layers. The use of selected copper materials in the PCB layers enables operation at high temperatures and with high efficiency. Particularly suitable for overclocking. AMD StoreMI Technology A powerful tool that combines the speed of an SSD and the capacity of your hard drive into one fast and easy-to-manage drive. SSDs are fast, but expensive; they also offer low capacity. Disk drives have a lot of memory for a low price, but are much slower than SSDs. AMD StoreMI technology 'merges' these two types of data storage into a single drive. It automatically moves the data you use most often to the SSD, so you enjoy the benefits of both worlds: the responsiveness of the SSD and the capacity of the platter drives. 42 A premium power choke Compared to traditional chokes, ASRock's new power chokes effectively increase (up to three times) the saturation current delivering amplified and improved CPU voltage to the motherboard. Sapphire Black PCB Pure Black PCB. The new Sapphire-Black PCB represents extraordinary stability and adds to the board's mysteriousness. High-density glass fibre PCB The high-density glass fibre PCB reduces the size of the gaps between PCB layers, which protects the motherboard from surges. 2 ounces of copper Using only carefully selected copper components for the PCB layers, the 2oz Copper PCB ensures lower operating temperatures and greater power efficiency when overclocking. Digi Power Technology This motherboard uses Next Generation Hybrid Power - Digi Power - for maximum control and smooth power transfer. By increasing the efficiency of the power supply and transmitting power directly to the CPU, the stability and lifespan of the motherboard is significantly increased. Solid capacitors ASRock has used solid capacitors on this motherboard. Thanks to them, the motherboard works more stable and has a longer lifespan. 3 graphics outputs This board is equipped with the three most common video output types: D-Sub + DVI + HDMI. In addition, the HDMI port supports 4K playback. Three monitors Graphics, graphics and more graphics! You wanted more working space, so this board supports the Triple Monitor function. You can now use up to three display devices and use them simultaneously without installing an additional graphics card. A-Tuning A-Tuning is ASRock's multifunctional board software with new interface, more features and improvements. Full Spike Protection Some of the delicate digital components on the motherboard are sensitive to power surges, and a higher voltage may cause immediate damage to your system. ASRock Full Spike Protection includes various technologies to protect your motherboard components from being damaged by these unexpected voltage surges. Live Update & APP Shop ASRock APP Shop is designed for your convenience. We provide various applications and software downloads. You can easily optimise your system and keep your motherboard up to date with the ASRock APP Shop. Special features:

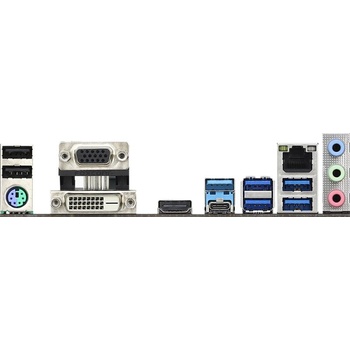

• ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
• ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
• ASRock Super Alloy
• Premium 42A Power Choke
• Sapphire Black PCB
• High Density Glass Fabric PCB
• 2oz Copper PCB
• ASRock Ultra M. 2 (PCIe Gen3 x4)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

Model:B450M Pro4 R2.0CPU socket:Socket AM4Processor family:AMD RyzenChipset manufacturer:AMDChipset type:AMD Promontory B450Memory type:DDR4Number of DDR4 slots:4Memory bus frequency:2133 MHz
2400 MHz
2667 MHz
2933 MHz
3200 MHzMax memory size:128 GBExpansion slots:1 x PCIe 3.0 x 16
1 x PCIe 2.0 x 16
1 x PCIe 2.0 x 1Max. number of SATA devices:4RAID:YesDetailed data on disk/drive interfaces:

• 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M. 2 Socket (M2_1), supports M Key type 2242/2260/2280 M. 2 PCI Express modul...
