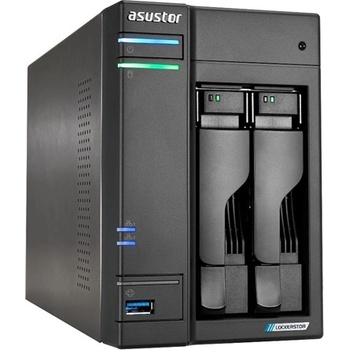

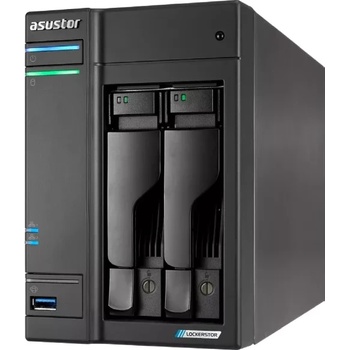

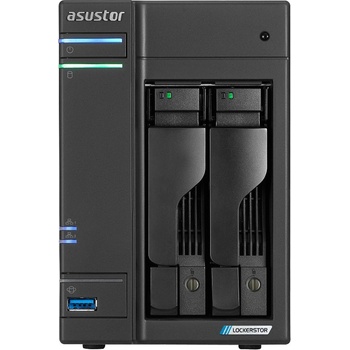

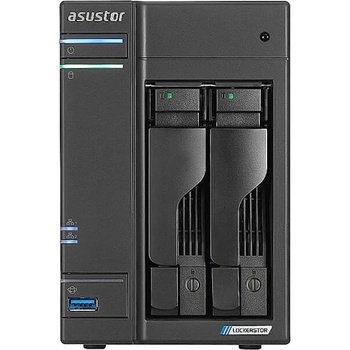

ASUS LOCKERSTOR 4 Gen2+ AS6702T V2

The No-Compromises 2.5GbE NAS

Enthusiast-grade NAS with two, four or six bays



• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for M. 2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN



Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats

ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, is automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.





Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors

The Lockerstor Gen2/Gen2+ comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.



Keeping Cool

With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2/Gen2+ ensures that all components in your NAS receive cooling. .



2.5 + 2.5 = Extreme Speeds

The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that’s not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.



Specification DetailsCPU Model Intel Celeron N5105CPU Architecture x64 64-bitCPU Frequency Quad-Core, 2.0GHz (burst up 2.90 GHz)Memory 4GB SO-DIMM DDR4Memory Module Pre-installed 4GB (1 x 4GB)Total Memory Slots 2Memory Expandable up to 16GB (2 x 8GB), Support mixed capacityFlash Memory 8GB eMMCDrive Bays 2M. 2 Drive Slots 4Compatible Drive Type 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD, M. 2 2280 NVMeM. 2 PCIe Interface PCIe 3.0 x1Maximum Internal Raw Capacity 36 TB (18 TB HDD X 2, Capacity may vary by RAID types)Maximum Drive Bays with Expansion Unit 10Maximum Raw Capacity with Expansion Units 200 TB (20 TB HDD X 10, Capacity may vary by RAID types)Supports Hot Swappable Drives YesExpansion 2 x USB 3.2 Gen 2 (10Gbps)Network 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)Multimedia Output 1 x HDMI 2.0bSystem Fan 1 x 70mmInfrared Receiver YesPower Supply Unit / Adapter 65W x1Input Power Voltage 100V to 240V ACCertification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCAWarranty 3 YearsPower Consumption 21 W (Operation); 13.5 W (Disk Hibernation); 0.79 W (Sleep Mode)Noise Level 17.7dB (HDD idle)Operation Temperature 0°C~40°C (32°F~104°F)Storage Temperature -20°C~70°C (-4°F~158°F)Humidity 5% to 95% RHSize 163.5 (H) x 108 (W) x 230 (D) mmWeight 2 kg / 4.4 lb
