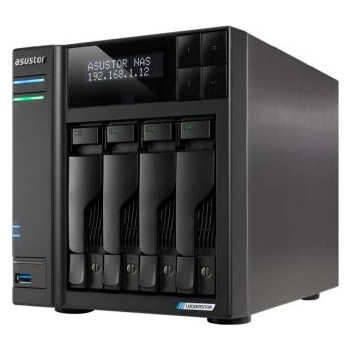

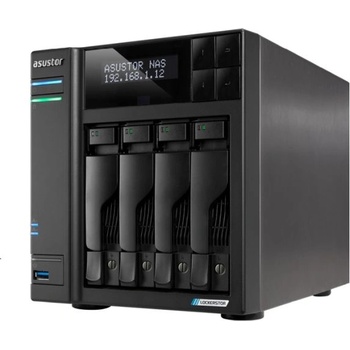

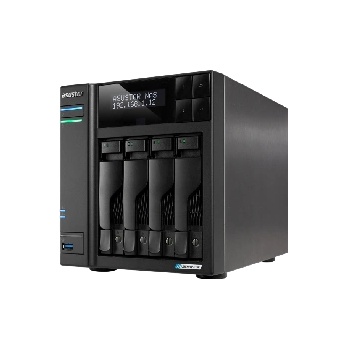

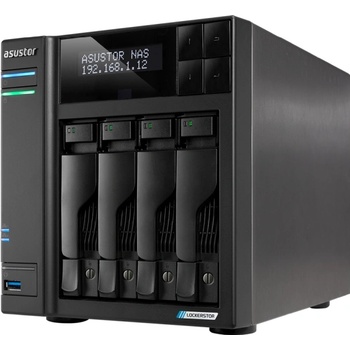

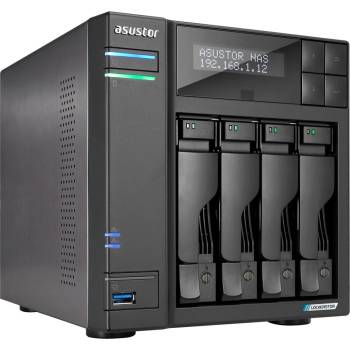

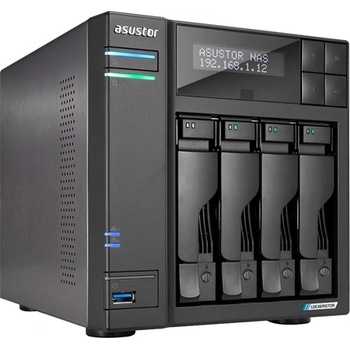

ASUS LOCKERSTOR 4 Gen2+ AS6704T V2

Asustor AS6704T_V2

Enthusiast-grade NAS with two, four or six bays

The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M. 2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.





Specifications:

Category Specification DetailsCPU CPU Model Intel Celeron N5105  CPU Architecture x64 64-bit  CPU Frequency Quad-Core 2.0 GHz (burst up to 2.90 GHz)Memory Memory 4GB SO-DIMM DDR4  Memory Module Pre-installed 4GB (1 × 4GB)  Total Memory Slots 2  Maximum Memory 16GB (2 × 8GB)  Mixed Capacity Support Yes  Flash Memory 8GB eMMCStorage Drive Bays 4  M. 2 Drive Slots 4  Compatible Drive Types 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD, M. 2 2280 NVMe  M. 2 PCIe Interface PCIe 3.0 x1  Maximum Drive Bays with Expansion Unit 12  Hot-Swappable Drives SupportedExternal Ports USB Ports 2 × USB 3.2 Gen 2 (10Gbps)  Network 2 × 2.5 Gigabit Ethernet (2.5G/1G/100M)  PCIe Expansion Slots 1 × slot for optional 10 GbE expansion card  Multimedia Output 1 × HDMI 2.0bOthers System Fan 1 × 120mm  LCD Panel Not specified  Infrared Receiver Not specified  Power Supply 90W ×1  Input Voltage 100V–240V AC  Certifications FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCAOperation Power Consumption 35W (Operation), 17.3W (Disk Hibernation), 0.88W (Sleep Mode)  Noise Level 17.6 dB (HDD idle)  Operating Temperature 0°C–40°C (32°F–104°F)  Storage Temperature -20°C–70°C (-4°F–158°F)  Humidity 5%–95% RHSize & Weight Dimensions 185.5(H) × 170(W) × 230(D) mm  Weight 2.94 kg (6.48 lb)
