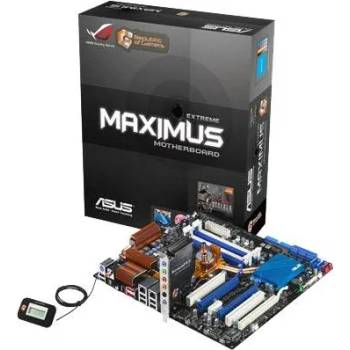

ASUS MAXIMUS EXTREME

Specification CPU LGA775 socket for Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors Support Intel® next generation 45nm Multi-Core CPU Compatible with Intel® 06/05B/05A processors Chipset Intel® X38/ICH9R with Intel® Fast Memory Access Technology Front Side Bus 1600 / 1333 / 1066 / 800 MHz Memory Dual channel memory architecture 4 x DIMM, max. 8GB, 1800(O. C)/1600(O. C. )/1333/1066, Non-ECC, un-buffered memory Support Intel® XMP Technology Expansion Slots 3 x PCIe x16 slot, support dual PCIe2. 0 x16 or 1x PCIe2. 0 x16, dual x8 speed 2 x PCIe x1, PCIex1_1 (black) is compatible with audio slot 2 x PCI 2. 2 VGA Support ATI CrossFire™ graphics cards Storage Southbridge - 6 x SATA 3. 0 Gb/s ports - Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10 JMicron® JMB363 PATA and SATA controller - 1 x UltraDMA 133/100/66 for up to 2 PATA devices - 2 x External SATA 3. 0 Gb/s port (SATA On-the-Go) LAN Dual Gigabit LAN controllers, both featuring AI NET2 Support Teaming Technology Audio SupremeFX II Audio Card - ADI 1988B 8-channel High Definition Audio CODEC - Noise Filter Coaxial, Optical S/PDIF out at back I/O IEEE 1394 2 x 1394a ports(1 port at back I/O, 1 port onboard) USB max. 12 USB2. 0/1. 1 ports(6 ports at mid-board, 6 ports at back panel) Overclocking Features Fusion Block System Crosslinx Technology Extreme Tweaker Loadline Calibration 2-Phase DDR3 Intelligent overclocking tools: - CPU Level Up - Memory Level Up - AI Overclocking (intelligent CPU frequency tuner) - ASUS AI Booster Utility - O. C Profile - Frequency LED Overclocking Protection: - COP EX (Component Overheat Protection - EX) - Voltiminder LED - ASUS C. P. R. (CPU Parameter Recall) Special Features LCD Poster EL I/O Onboard Switches: Power / Reset / Clr CMOS(at rear) Q-Connector Q-Fan Plus ASUS EZ Flash2 ASUS CrashFree BIOS3 ASUS MyLogo3 Back Panel I/O Ports 1 x PS/2 Keyboard port(purple) 1 x Optical + 1 x Coaxial S/PDIF Output 2 x External SATA 2 x LAN (RJ45) port 6 x USB 2. 0/1. 1 ports 1 x IEEE1394a port 1 x Clr CMOS switch Internal I/O Connectors 3 x USB 2. 0 connectors supports additional 6 USB 2. 0 ports 1 x Floppy disk drive connector 1 x IDE connector for two devices 6 x SATA connectors 8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional 3 x thermal sensor connectors 1 x IEEE1394a connector 1 x S/PDIF output connector 1 x Chassis Intrusion connector 24-pin ATX Power connector 8-pin ATX 12V Power connector 1 x En/Dis-able Clr CMOS 1 x EL I/O Shield Connector System panel connector BIOS 16Mb AMI BIOS, PnP, DMI2. 0, WfM2. 0, SM BIOS 2. 4, ACPI2. 0a Multi-Language BIOS Manageability WOL by PME, WOR by PME, Chasis Intrusion, PXE Accessories Fusion Block System Accessory DIY Pedestal ASUS Optional Fan 3 in 1 ASUS Q-Connector Kit UltraDMA 133/100/66 cable Floppy disk drive cable SATA cables SATA power cables 2-port USB2. 0 module+IEEE1394a module EL I/O Shield Thermal sensor cables Cable Ties User's manual Support Disc The hottest 3D Game: S. T. A. L. K. E. R. Support DVD: Drivers ASUS PC Probe II ASUS Update ASUS AI Suite Futuremark ® 3DMark® 06 Advanced Edition Kaspersky® Anti-Virus Form Factor ATX Form Factor, 12"x 10. 6" (30. 5cm x 26. 9cm)
