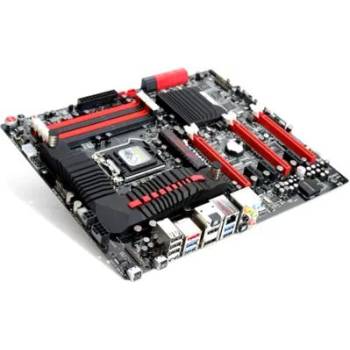

ASUS MAXIMUS V FORMULA

Maximus V Formula
Mixes air and water cooling with superior graphics power

- LGA1155 socket for Intel® 3rd/2nd Generation Core i7/ i5/ i3/ Pentium® / Celeron® Processors
- Intel® Z77 Express Chipset
- SupremeFX IV – AMPed For Perfect Audio
- GameFirst II/Intel Gb LAN – Put Your Frags First
- mPCIe Combo + dual-band Wi-Fi/Bluetooth 4.0
- Fusion Thermo Solution - World’s first hybrid air and water cooling thermal design
- Windows 8 Ready – Assured Compatibility

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www. asus. com for CPU support list

Chipset

Intel® Z77

Memory

4 x DIMM, Max. 32GB, DDR3 2800(O. C. )/2666(O. C. )/2600(O. C. )/2400(O. C. )/2200(O. C. )/2133(O. C. )/1866(O. C. )/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www. asus. com or user manual for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Supports Intel® HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Multi-GPU Support

Supports NVIDIA® SLI Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD CrossFireX Technology
Supports LucidLogix® Virtu MVP Technology *1

Expansion Slots

3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *2
1 x PCIe 2.0 x4
3 x PCIe 2.0 x1
1 x mini-PCIe 2.0 x1 *3

Storage

Intel® Z77 chipset :
2 x SATA 6Gb/s port(s), red
2 x SATA 3Gb/s port(s), black
1 x eSATA 3Gb/s port(s), red
1 x mini-SATA 3Gb/s port(s) , black
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4
ASMedia® PCIe SATA controller : *5
4 x SATA 6Gb/s port(s), red

LAN

Intel®, 1 x Gigabit LAN Controller(s)

Wireless Data Network

Wi-Fi 802.11 a/b/g/n
Supports dual band frequency 2.4/5 GHz

Bluetooth

Bluetooth V4.0
Bluetooth V3.0+HS

Audio

SupremeFX IV built-in 7.1-Channel High Definition Audio CODEC
- Output Signal-to-Noise Ratio (A-Weighted): 110 dB
- Output THD+N at 1kHz: 95 dB
- TI 6120A2 high fidelity headphone amplifier
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- SupremeFX Shielding Technology
- ELNA premium audio capacitors
- 1500 uF Audio Power Capacitor
- Blu-ray audio layer Content Protection
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel

USB Ports

Intel® Z77 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset :
8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board)
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)

Overclocking Features

mPCIe Combo (mPCIe/mSATA combo card)
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
- GPU TweakIt
Extreme Engine Digi+ II :
- 8 -phase CPU power design + 4 -phase iGPU power design
- 2 -phase Memory power design
ROG Extreme OC kit :
- Slow Mode
- LN2 Mode
- EZ Plug
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU. DIMM Post
GameFirst II
iROG
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Overclocking Protection :
- ASUS C. P. R. (CPU Parameter Recall)

Special Features

ASUS TurboV EVO :
- CPU Level Up
ASUS EPU :
- EPU
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS O. C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports

1 x DisplayPort
1 x HDMI
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
1 x Optical S/PDIF in
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
3 x Optional Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Slow Mode switch(es)
8 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x LN2 Mode header(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x Go Button(s)
1 x mPCIe Combo header(s)

Accessories

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo card(s) with dual band WiFi 802.11 a/b/g/n module + Bluetooth v4.0/3.0+HS module
1 x 2-in-1 RF Cable(s)
2 x Wi-Fi Ring Moving Antenna(s)

BIOS

64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS

Manageability

WfM2.0, DMI2.0, WOL by PME, PXE

Support Disc

Drivers
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
GameFirst II
ROG CPU-Z
Mem TweakIt
ASUS AI Suite II
ASUS WebStorage
ASUS Utilities

Form Factor

Extended ATX Form Factor
12 inch x 10.1 inch ( 30.5 cm x 25.7 cm )

Note
*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
*2-1: PCIe 3.0 speed is supported by Intel® 3rd generation Ivy Bridge Core Processors.
*2-2: x8/x4/x4 mode is supported by Intel® 3rd generation Ivy Bridge Core Processors.
*3-1: The mPCIe 2.0 x1 slot is located on mPCIe Combo expansion card.
*3-2: The mini-PCIe slot is pre-installed with an Wi-Fi/Bluetooth module.
*4: Supports on Intel® Core processor family with Windows® 7 operating systems.
*5: These SATA ports are for data hard drives only.
