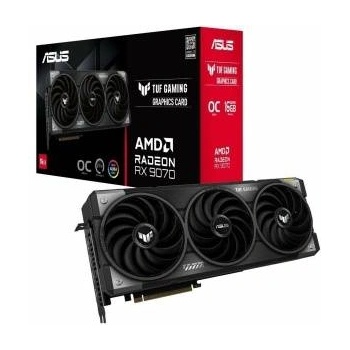

ASUS TUF Gaming Radeon RX 9070 OC 16GB GDDR6 256bit (90YV0LI0-M0NA00)

Axial-tech Upgrades:
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans

New Directions:
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.

Tech Specs

Memory Speed
20 Gbps​

Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)

Bus Standard
PCI Express 5.0

OpenGL
OpenGL 4.6

Video Memory
16GB GDDR6

Engine Clock
TBD

Stream Processors
3584

Memory Interface
256-bit

Resolution
Digital Max Resolution 7680 x 4320

Maximum Display Support
4

NVlink/ Crossfire Support
No

Dimensions
330 x 140 x 62.5 mm

Recommended PSU
750W

Power Connectors
2 x 8-pin

Slot
3.125 Slot

AURA SYNC
RGB

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
