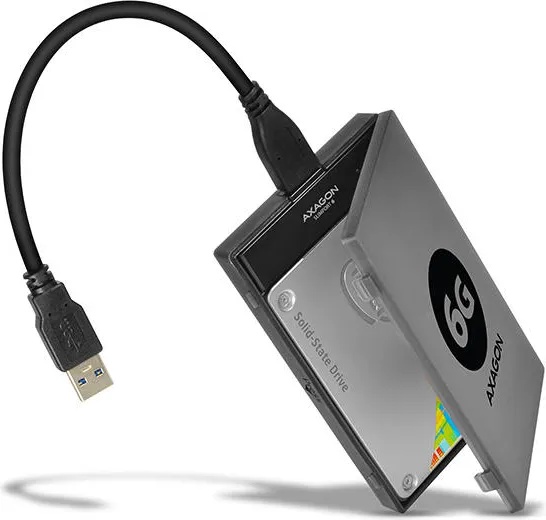

AXAGON ADSA-1S6 2.5

AXAGON ADSA-1S6



A compact USB 3.0 adapter with case is designed for all 2.5" SATA SSDs and hard disks up to 9.5 mm height.
It deals with all SATA, SATA II and SATA III 2.5" drives without limiting maximum capacity.
The USB 3.0 interface guarantees seamless, high-speed connectivity to all existing computers.

USB 3.0 ANY 7 & 9.5 mm 2.5" HDD/SSD ANY CAPACITY

The actual SATA III/6G interface with UASP support allows you to enjoy the speed of modern SSD disks.
The UASP support significantly increases transmission rates especially when working with small files in the queue.
Supports TRIM feature to limit the gradual degradation of SSD performance over time.

USB 3.0 SATA 6G UASP

Disk installation only takes a few seconds.
Simply plug the disk directly into the SATA connector of the adapter.
The set can be connected to the PC immediately or inserted into a protective case before that.
No screws, just a few simple steps.

THE FASTEST & EASIEST ASSEMBLY SCREWLESS

The case holds a standard 2.5" disk even with a USB adapter connected.
It also serves to transport or store the adapter itself without the disk, with a cable inside the case.
Minimum dimensions and weight make the product ideally suited also for occasional mobile use.

PRACTICAL CASE MINI & LIGHTWEIGHT MOBILE

Pure minimalist design of slim and lightweight body.
Pleasantly matte surface finish.
The delicate blue LED indicates power and data transmission.

PURE DESIGN SLIM CASE MATTE FINISH DELICATE BLUE LED

Reading of S. M. A. R. T. information monitoring the condition of the external disk.
Supports turning off the disk after removing the device or spinning down the PC.
You can boot your computer from an SSD or hard drive in the external box.

HDD S. M. A. R. T. INFO HDD TURN OFF BOOT SUPPORT

AXAGON SLIMport 6 is a small but very fast and handy helper usable in many ways such as data storage and sharing, backup, disk testing, and more.
It is an ideal tool for data migration when replacing the hard drive with a solid state drive disk in your laptop.
The installation can be handled even by a layman - the disk connects to the adapter and the adapter to the computer's USB port; the rest is done automatically.

HANDY TOOL DATA MIGRATION AUTO INSTALL

A compact AXAGON ADSA-1S6 SLIMport6 high-speed adapter with USB 3.0 and SATA 6G interface intended for easy connection of SSD or 2.5" SATA disk.

A handy tool to quickly connect a SSD or laptop disk, including boot support.

The UASP support significantly increases transmission rates especially when working with small files in the queue.

The TRIM feature support limits the gradual degradation of SSD performance over time.

Reading of S. M. A. R. T. information monitoring the condition of the connected disks. Supports spinning down of connected disks as well as an adapter.

The installation can be handled even by a layman - the disk connects to the adapter and the adapter to the computer's USB port; the rest is done automatically.

Minimum dimensions and weight, along with an enclosed disc case, make the product ideally suited even for mobile use.

Tech Specs

Input  interface USB 3.0 / USB 2.0 / USB 1.1rate 5000 / 480 / 12 Mbit/s (super / high / full speed)connector USB 3.0 Micro B female (on the USB adapter)connector USB Type A male (on the cable)cable 10 cm, disconnectableOutput  interface Serial ATA 3.1rate 6 / 3 / 1.5 Gbit/s (SATA III / SATA II / SATA I)connector 22-pin SATA data and power femalecompatibility all SATA I / SATA II / SATA III diskstotal permeability 5 Gbit/s theoretically (given by USB 3.0 input)Supported device  2.5" yes (SATA HDD/SSD)max. disk capacity all, without limitationsmax. height of 2.5" disk 9.5 mm (in the case) / no limit (without the case)Supported features  UASP yesTRIM yesS. M. A. R. T. yesboot from connected disk yesputting disk to sleep yes (HDD Auto Spindown / 22 min)disk turning off yes (HDD Turn Off)automatic installation yesPlug and Play yesHot Plug yesOther features  design plasticscrewless mounting yesindication blue LED - connection to the USB port of the computer (permanently on), data transmission (flashes)dimensions 122 x 78 x 19 mm
