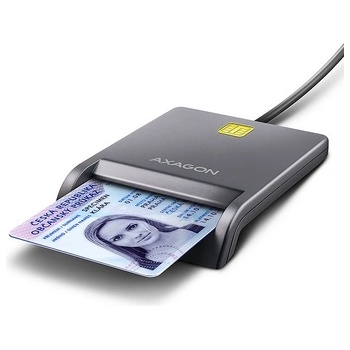

AXAGON CRE-SM3T

Compact desktop Smart card / ID card reader AXAGON CRE-SM3T FlatReader with USB 2.0 interface. It is especially suitable as an ID card reader for use with computers that have a USB input. The most widespread USB-A connector ensures connection to both new and older computers.
Thanks to the Plug&Play function, the reader is immediately operational without the need to installdrivers. For further work with the inserted card, just install theappropriate application. The reader is compatible with most national applications for eID (electronic ID cards).
The card reader supports all common contact Smart card formats, chip cards and other cards, including contact bank payment cards or contact electronic ID cards *. Compatibility with all common OS such as Windows, Linux, macOS and Android, allows wide use on desktops and laptops as well as smartphones and tablets.
Thesmart LED indicator lights up shortly after the activity change, thenturns off and doesn't bother the user with unnecessary light. Compact design, high-quality manufacturing, anti-slip pad and long cable ensure easy and trouble-free use.
Input:
USB 2.0, protocol CCID.
Backward compatible with USB 1.1.
Connection to computer via USB 2.0 type A male connector.
For connection to a phone or tablet with a USB-C connector, we recommenda USB-C -> USB-A reduction, e. g. AXAGON RUCM-AFAC. For connection toa phone with a micro-USB connector, we recommend an OTG reductionmicro-USB -> USB-A.
Card reader:
1 slot supports contact ATM / CAC / ID / IC / SIS cards.
Supports ISO 7816 Class A, B and C contact Smart cards (5V, 3V and 1.8V).
Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
Supports protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
PC/SC 2.0 PC Smart Card standard support.
Microsoft Smart Card for Windows support.
Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
Microsoft WHQL USB Smart Card Reader compliant.
FIPS 201 standard compliant.
Other features:
Microsoft USB-CCID driver compatible.
Plug and Play support.
Support power saving mode, automatic switching to power saving mode.
Powering the reader via USB bus (bus-power).
A LED indicates computer USB port connection (steady) and data transfer (flashing).
LED indicators light up shortly after the activity change, then turns off and doesn't bother.
Anti-slip pad against spontaneous movement on the table.
Dimensions89 x 65 x 15mm, cable length 1.3 m.
Weight 56 g.
Supported operating systems:
MS Windows 7 / 8.1 / 10 / 11 and later, macOS, Linux and Android.
to work with the Smart card, it is necessary to install a suitable application on the connected device.
* Note: The reader only supports contact cards that have visiblecontacts on the surface. The card without contacts is therefore RFID andcannot be used in the reader.
Package contains:
USB Smart card reader with 1.3 m hardwired cable,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU/ IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
packed in a cardboard box with a hanging hole.

Input

interface
USB 2.0 / USB 1.1

rate
480 / 12 Mbit/s (high / full speed)

connector
USB Type A male (on the cable)

cable
1.3 m

card reader

number of slots
1

slot Smart Card
ATM / CAC / ID / IC / SIS

Supported features

automatic installation
yes

Plug and Play
yes

Other features

indication
LED indicating - connection to the computer's USB port (permanent light), data transmission (flashes)

dimensions
89 x 65 x 15 mm

weight
56 g

Power supply

on the bus
yes (USB bus power)

OS support

MS Windows
10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)

MS Windows Server
2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)

Mac OS
X 10. x and higher

Linux
kernel 2.4. x and higher
