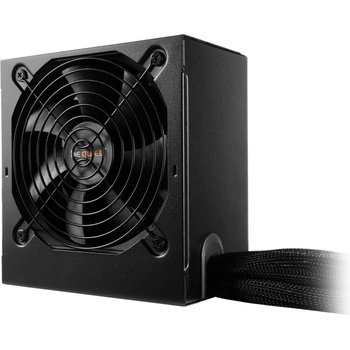

be quiet! System Power B9 600W 80 PLUS Bronze (BN209)

Be Quiet BN209

Спецификации:

Output

12V rails (multi-rail operation): 2
12V single rail operation: -
Overclocking key: -
+3.3V (A): 24
+5V (A): 15
+12V1 (A): 28
+12V2 (A): 22
+12V3 (A): -
+12V4 (A): -
+12V5 (A): -
+12V6 (A): -
-12V (A): 0,3
+5Vsb (A): 3
Max. combined power 12V (W): 576
Max. combined power 3.3V + 5V (W): 120
Hold-up time (ms @ 100%): 17 @ 75% load
Power good signal: 100-500ms

Fan / Cooling technology

Fan type: high-quality fan
+SilentWings: -
Motor technology: 4-pole fan motor
Bearing technology: Sleeve
Fan size (mm): 120
Max. fan speed (rpm), temperature-dependent: 2100
Temperature control for case fans: -
dB(A) at 20% load: 9.2
dB(A) at 50% load: 12.8
dB(A) at 100% load: 31.2

Protection

OCP (over current protection): ✓ (Yes)
OVP (over Voltage protection): ✓ (Yes)
UVP (under Voltage protection): ✓ (Yes)
SCP (short circuit protection): ✓ (Yes)
OTP (over temperature protection): ✓ (Yes)
OPP (over power protection): ✓ (Yes)

Safety certification

CE: ✓
CB: ✓
TÜV: ✓
Nemko (N): -
Semko (S): -
Fimko (FI): -
Demko (D): -
FCC: -
cRUus: -
cTUVus: -
RCM (Australia): ✓
BSMI: -
CU (Russia): ✓
CCC: -

Eco / Efficiency

80 PLUS certification: Bronze (230V EU internal)
Efficiency (%) at 230V, 20% load: 87
Efficiency (%) at 230V, 50% load: 89
Efficiency (%) at 230V, 100% load: 86

Environmental directives

Energy Star: 6.1
ErP: ✓
WEEE: ✓
RoHs: ✓

Cable management / Connectors

Multi-GPU ready: ✓
Modular Cable management: -
Fully modular: -
Sleeved cables: ✓
Flat cables: -
Cable length to mainboard (cm): 55
Cable length to first connector (cm): 50
Maximum cable length (cm): 95
All-in-one cable (SATA/PATA/FDD): -
No. of cables: 5
ATX-Motherboard (20+4-pin): 1x 24
P8 (CPU): -
P4+4 (CPU): 1
P4 (CPU): -
PCI-e 6-pin (GPU): -
PCI-e 6+2-pin (GPU): 2
PATA 4-pin: 2
SATA 15-pin (HDD, Drives): 6
FDD (Floppy): -
External fan connectors: -
