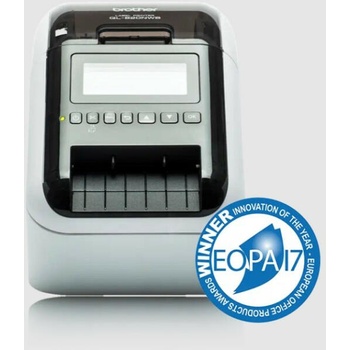

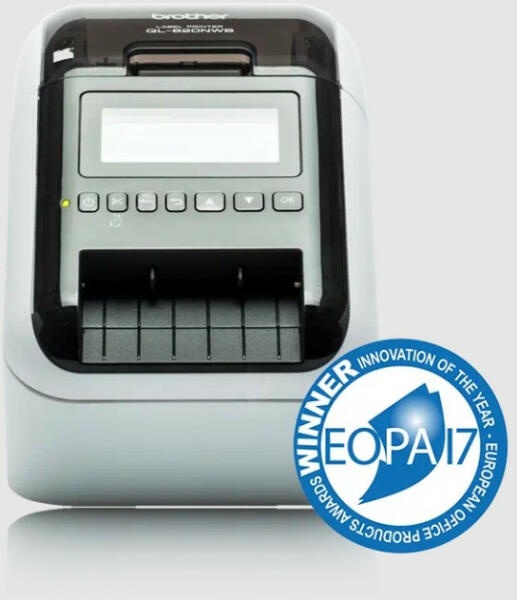

Brother QL-820NWBc (QL820NWBCYJ1)

BROTHER QL820NWBYJ1 Labels printer





Manufacturer
BROTHER

Manufacturer Part No
QL820NWBCYJ1



Marketing Description

Label printer with a wide range of integrated connectivity options, including Wi-Fi, wired Ethernet, Bluetooth and AirPrint. The large back-lit LCD display enables easy setup and operation.

Product Features

Integrated LCD for easy operationEasily select the labels stored in memory that you wish to print, thanks to the large backlit graphic display. Setting up and configuring the machine is made much easier, as is troubleshooting if any errors occur with on-screen guidance on the problem and how to easily resolve it.
Full range of connectivityWith USB, wired Ethernet, Wi-Fi, and Bluetooth as standard, you have all your options covered. AirPrint and MFi certification (Made for iPod/iPhone/iPad) ensures maximum compatibility with Apple products too.
Print labels without a computerThe QL-820NWBc works as a traditional label printer - simply design your label on your PC or Mac, and then print. In addition, your commonly used labels can be uploaded to the internal memory locations. Then, simply scroll through the stored labels using the control panel to select and print the label. You can even print the current date and time or let the printer calculate a future one, making it ideal for printing labels for food packaging and "tested on/next test due" applications.

General

Printer Type
Label printer - direct thermal - two-colour (monochrome)

Enclosure Colour
Black, white

Printer

Print Speed
Up to 110 labels/minUp to 176 mm/sec

Built-in Devices
Backlit LCD

Connectivity Technology
Wireless

Interface
USB, LAN, Wi-Fi(n), Bluetooth 5.2

AirPrint Enabled
Yes

Max Resolution (B&W)
300 x 600 dpi

Fonts
Brussels, Helsinki, San Diego, Letter Gothic, Letter Gothic Bold, Brougham, TrueType

Styles & Effects
Bold, normal, vertical, shadow, italic, frame, shadow light, horizontal lines, invert

Features
Date/time stamp, vertical print

Auto Cutter
Yes

Barcodes
Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Postnet, PDF417, Data Matrix, Truncated PDF417, Micro QR code, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Stacked, ITF 2 of 5, EAN-8, GS1-128, RSS, QR Model 1

RAM

RAM Installed (Max)
6 MB

Media Handling

Media Type
Continuous labels, die cut labels

Compatible Tapes
DK tape

Max Media Size
Roll (6.2 cm)

Max Media Size (Custom)
62 mm

Media Sizes
Roll (6.2 cm)

Max Printing Width
60.96 mm

Media Feeders
1 x manual - 1 roll - Roll (6.2 cm)

Networking

Security Protocols & Features
WEP, WPA-PSK, WPA2-PSK, TKIP, AES, Wi-Fi Direct, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST, WPA3-SAE

Expansion / Connectivity

Connections
1 x USB1 x LAN

Miscellaneous

Cables Included
1 x USB cable

Media Included
29 x 90 mm black on white standart address labels (100 labels), DK-22251 62 mm continuous length black/red on white paper tape 5 m

Compliant Standards
MFI

Power

Power Device
Power adapter - external

Battery

Type
Lithium Ion

Software / System Requirements

Software Included
Software Development Kit (SDK)

OS Required
Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Windows 11, Apple macOS 10.15. x or later, Apple macOS 11. x or later

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Dimensions & Weight

Width
12.5 cm

Depth
23.4 cm

Height
14.5 cm

Weight
1.16 kg

Technical data provided by third party. We assume no liability for errors within these data.
