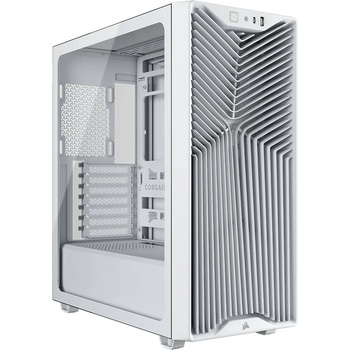

Corsair 3200D RS white (CC-9011335-WW)

Corsair 3200D RS



GAMING POWERHOUSE

ROOM FOR THE BIGGEST GPUs

The 3200D is a spacious mid-tower chassis designed for modern GPUs.  With 375mm of clearance with front fans installed, even the most powerful GPUs have plenty of room to breathe. The PSU shroud also features 2x 120mm fan mounts, with the front one being angled directly at the GPU, providing even more cooling power for the hottest GPUs.



AIR BENDING

THREE RS120 FANS INCLUDED

RS120 PWM fans minimize friction and mechanical noise with its magnetic dome bearing, achieving a balance between high airflow performance with a low acoustic footprint.

UNIFIED FAN CONTROL

DIRECT-TO-MOTHERBO ARD CONNECTION

Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.

*RS ARGB fans and connections shown.



CABLE MANAGEMENT CHEAT CODE

DESIGNED FOR SUPER-CLEAN BUILDS

Cable management is easy in the 3200D with support for reverse-connector motherboards, a built-in cable shroud, and ample tie-down locations throughout the chassis.



FUNCTION FIRST

BUILT FOR THE REAL WORLD

Every detail of the 3200D is focused on performance and how your system runs day to day. From keeping your graphics card securely in place to directing airflow where it is needed most, these features work together to help your build maintain optimal performance.

SAG-FREE GRAPHICS CARDS

Every 3200D includes a built-in Anti-sag Stabilization Arm that is adjustable, so you don’t have to worry about damaging your GPU or your PCIe slot.

ANGLED BOTTOM FAN MOUNT

An angled fan mount in the bottom of the case allows cool air to be channeled directly at the GPU for improved cooling and better GPU temps.

HIGH-AIRFLOW FRONT PANEL

Engineered for high airflow, the front panel delivers excellent cooling for high-power components with a unique style.



WIDE COOLING FLEXIBILITY

The CORSAIR 3200D is made to keep the hottest components cool with 2x 360mm radiator mounting locations and fan mounts throughout the chassis for continuous airflow.



Fan capacity

There are 3x 120mm fans pre-installed with room for 6x additional 120mm fans or 4x 140mm fans for continuous airflow.

120mm

140mm



Tech Specs



Case Supported Mini-ITX | MicroATX | ATXCase Height 495mmCase Length 458mmCase Width 219mmMaterial Steel, Tempered Glass, PlasticCase Size Mid-TowerRadiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mmCase Window Tempered GlassCompatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITANInternal 3.5" Drive Bays 1Internal 2.5" Drive Bays 2Maximum CPU Cooler Height 165mmMaximum PSU Length 180mmCase Front IO (1x) USB 3.2 Gen 2x2 Type-C, (1x) USB 2.0 Type-A, (1x) Audio in/outMaximum GPU Length 400mmWeight 8.5kgCase Expansion Slots 7 HorizontalCase Power Supply ATXRadiator Support - Top 360mm, 280mm, 240mmRadiator Support - Front 360mm, 280mm, 240mmRadiator Support - Bottom NoneRadiator Support - Side NoneRadiator Support - Rear 120mmFan Support - Top 3x 120mm, 2x 140mmFan Support - Front 3x 120mm, 2x 140mmFan Support - Bottom 2x 120mmFan Support - Side NoneFan Support - Rear 1x 120mmFront IO Motherboard Connections 1x USB-3.2 Gen2x2 Type-E, 1x USB 2.0 9-Pin, 1x F_PANEL, 1x HD AudioReverse Connector Motherboard Support YesIncluded Fans RS SeriesDust Filtration YesCable Routing Space 24mmRapidRoute Included NoLeft Side Panel Tempered GlassRight Side Panel SteelVertical Mount Support Unsupported
