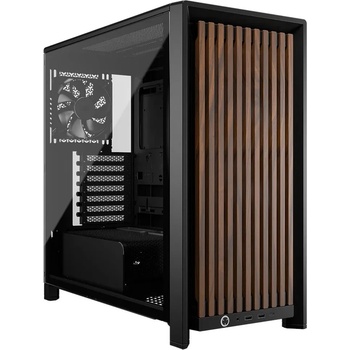

Corsair Frame 4000D RS Wood (CC-9011340-WW)

Corsair Frame 4000D Wood RS



Naturally cooler
Natural wood front panel

The FRAME 4000D WOOD RS lets you create a standout build that blends right in thanks to a refined front panel featuring real wood for the perfect mix of style and cooling performance.

Go with the flow
Four RS120 PWM fans included

RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.

Extra airflow

An additional 120mm fan is pre-installed in the rear mount to help keep components cooler right out of the box.

Sag-free graphics cards

Every CORSAIR FRAME 4000D WOOD RS includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

Cable shroud

Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.



Fan capacity

120mm

140mm

200mm



120mm

140mm



Tech Specs



Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)Case Height 486mmCase Length 490mmCase Width 239mmMaterial Steel, Solid Wood, Tempered Glass, PlasticCase Size Mid-TowerRadiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mmCase Window Tempered GlassCompatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITANInternal 3.5" Drive Bays 1Internal 2.5" Drive Bays 2Maximum CPU Cooler Height 170mmMaximum PSU Length 220mmCase Front IO (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/outMaximum GPU Length 430mmWeight 11.82kgCase Expansion Slots 7 Horizontal or 3 VerticalCase Power Supply ATXRadiator Support - Top 360mm, 280mm, 240mmRadiator Support - Front 360mm, 280mm, 240mmRadiator Support - Bottom NoneRadiator Support - Side 360mm, 280mm, 240mmRadiator Support - Rear 140mm, 120mmFan Support - Top 3x 120mm, 2x 140mmFan Support - Front 3x 120mm, 2x 140mm, 2x 200mmFan Support - Bottom 3x 120mmFan Support - Side 3x 120mm; 2x 140mmFan Support - Rear 1x 120mm, 1x 140mmFront IO Motherboard Connections 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD AudioReverse Connector Motherboard Support YesIncluded Fans RS SeriesDust Filtration YesCable Routing Space 37mmRapidRoute Included NoLeft Side Panel Tempered GlassRight Side Panel SteelVertical Mount Support Supported (Riser Card Sold Separately)
