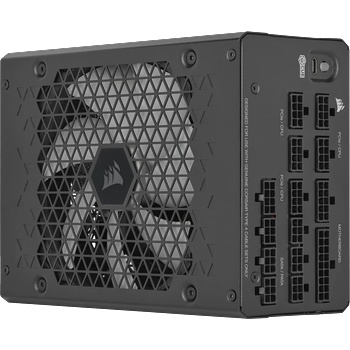

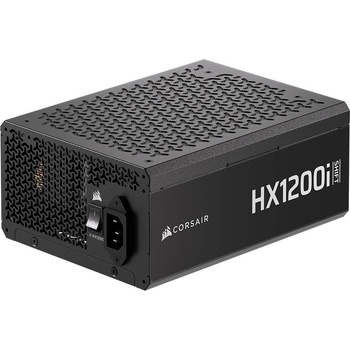

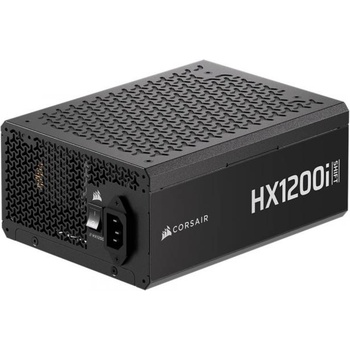

Corsair HXi Series HX1200i Shift 1200W (CP-9020267)

Corsair HX1200i Shift



Single-cable connectivity for easy DIY PC building

iCUE LINK Smart Component Ecosystem

Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.



Easy access

Side-mounted connections

The fully-modular connections have all been shifted to the side of the PSU, allowing for easy access and simplifying hardware upgrades and cable management. Includes a debossed PVC cable kit with smaller Type-5 connectors for easy cable routing and a premium look.

*30mm of clearance between the PSU and side panel is required.

Next-gen ready

Native 12V-2x6 GPU power cable

CORSAIR HXi SHIFT power supplies feature all the connections needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and CPUs.

Low noise

Quiet operation with zero RPM mode

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

Future proof

ATX 3.1 compliant and PCIe 5.1 ready

HXi SHIFT series power supplies feature a fully digital design for tighter electrical power regulation, quick regulation to variable power loads, and the ability to monitor and adjust OCP settings within iCUE.

*Illustration for reference only, models may differ.



AC input rating



C able listing

QTY

Cable

Connectors per cable

Total connectors

Connector spacing

Total length

Cable type

1

ATX Motherboard (24-pin) - Modular

1

1

610mm

610mm
(± 10mm)

Debossed

2

ATX12V / EPS12V (4+4-pin) - Modular

1

2

650mm

650mm
(± 10mm)

Debossed

2

8-pin PCIe (6+2-pin) - Modular

1

2

650mm

650mm
(± 10mm)

Debossed

1

90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin) - Modular

2

2

650mm

650mm
(± 10mm)

Debossed

1

90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular

1

1

650mm

650mm
(± 10mm)

Debossed

2

4 SATA - Modular

4

8

445mm,
155mm,
155mm,
155mm

800mm
(± 10mm)

Debossed

2

4 PATA - Modular

4

8

450mm, 100mm, 100mm, 100mm

750mm
(± 10mm)

Debossed

1

USB (Type-C to USB 10-pin Header) - Modular

1

1

525mm

525mm
(± 25mm)

Round

1

iCUE LINK to 90° iCUE LINK - Modular

1

1

200mm

200mm
(± 25mm)

Round

1

 iCUE LINK to iCUE LINK - Modular

1

1

600mm

600mm
(± 25mm)

Round





Tech Specs

Cybenetics Efficiency PlatinumCybenetics Noise A++Special Technology DSPPATA Connector 8EPS Connector 2SATA Connector 8Fan Bearing Technology Fluid Dynamic BearingModern Standby YesDimensions 200mm x 150mm x 86mmModular FullyCable Type Type 5PCIe Connector 4Zero RPM Mode YesPSU Form Factor ATXFan Size MM 140Continuous Power W 1200 WattsATX Connector 1ATX12V Version 3.1MTBF Hours 100,000 hoursWeight 3.978kg
