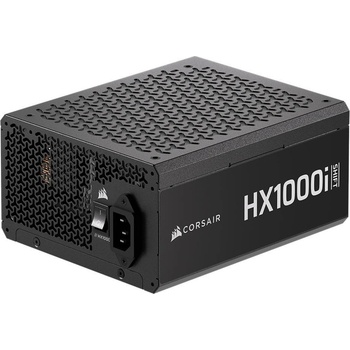

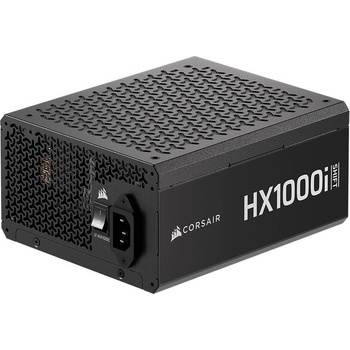

Corsair iCUE Link HXi Shift HX1000i 1000W (CP-9020265-EU)

Corsair HX1000i Shift



Ready to cool

Integrated iCUE Link system hub

The first CORSAIR power supply to feature an iCUE LINK System Hub to give you control of up to 24 iCUE LINK devices for next-level cooling and lighting customization.

*HX1500i SHIFT model shown

Easy access

Side-mounted connections

The fully-modular connections have all been shifted to the side of the PSU, allowing for easy access and simplifying hardware upgrades and cable management. Includes a debossed PVC cable kit with smaller Type-5 connectors for easy cable routing and a premium look.

*30mm of clearance between the PSU and side panel is required.

Next-gen ready

Native 12V-2x6 GPU Power cable

CORSAIR HXi SHIFT power supplies feature all the connections needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and CPUs.

Future proof

ATX 3.1 compliant and PCIe 5.1 ready

HXi SHIFT series power supplies feature a fully digital design for tighter electrical power regulation, quick regulation to variable power loads, and the ability to monitor and adjust OCP settings within iCUE.

*Illustration for reference only, models may differ.

Low noise

Quiet operation with zero RPM mode

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.



105°C-rated Japanese capacitors

Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

50°C Continuous operating temperature

Ensures reliable power even under high-stress conditions.



AC INPUT RATING



AC INPUT

100–240V

100V–240V
(Only for Korea and India)



INPUT CURRENT

13A–6.5A

10A



FREQUENCY

47Hz–63Hz



Max LOAD

+3.3V: 25A

+5V: 20A

+12V: 83.3A

+5VSB: 3A



Max OUTPUT

+3.3V ; +5V: 150W

+12V: 1000W

+5VSB: 15W



TOTAL POWER

1000W



QTY CABLE CONNECTORS PER CABLE TOTAL CONNECTORS CONNECTOR SPACING TOTAL LENGTH CABLE TYPE1 ATX Motherboard (24-pin) - Modular 1 1 610mm 610mm
(± 10mm) Debossed2 ATX12V / EPS12V (4+4-pin) - Modular 1 2 650mm 650mm
(± 10mm) Debossed2 8-pin PCIe (6+2-pin) - Modular 1 2 650mm 650mm
(± 10mm) Debossed1 90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin) - Modular 2 2 650mm 650mm
(± 10mm) Debossed1 90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular 1 1 650mm 650mm
(± 10mm) Debossed2 4 SATA - Modular 4 8 445mm,
155mm,
155mm,
155mm 800mm
(± 10mm) Debossed2 4 PATA - Modular 4 8 450mm, 100mm, 100mm, 100mm 750mm
(± 10mm) Debossed1 USB (Type-C to USB 10-pin Header) - Modular 1 1 525mm 525mm
(± 25mm) Round1 iCUE LINK to 90° iCUE LINK - Modular 1 1 200mm 200mm
(± 25mm) Round1 iCUE LINK to iCUE LINK - Modular 1 1 600mm 600mm
(± 25mm) Round



Tech Specs



Cybenetics Efficiency PlatinumCybenetics Noise A+Special Technology DSPPATA Connector 8EPS Connector 2SATA Connector 8Fan Bearing Technology Fluid Dynamic BearingModern Standby YesDimensions 180mm x 150mm x 86mmModular FullyCable Type Type 5PCIe Connector 4Zero RPM Mode YesPSU Form Factor ATXFan Size MM 140mmContinuous Power W 1000 WattsATX Connector 1ATX12V Version 3.1MTBF Hours 100,000 hoursWeight 3.557kg
