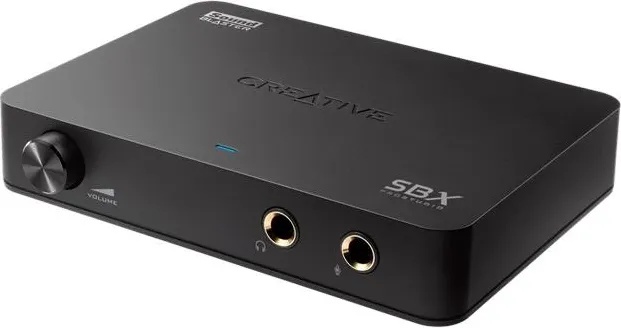

Creative Sound Blaster X-Fi HD SB1240

Звукова карта външна Creative sound card SB XFI HD USB

Спецификации
Playback:
24-bit Digital-to-Analog conversion of digital sources in 24-bit with sampling rate of up to 96 kHz without audio monitoring.
Recording:
24-bit Analog-to-Digital conversion of analog sources in 24-bit with sampling rates up to 96 kHz without audio monitoring.
Signal-to-Noise Ratio: Front Channel Out/Headphone: 114 dB (20kHz Low-pass filter, A-Weighted)
Audio Technology: SBX Pro Studio

Connectivity:
Microphone input (1/4" jack), 6.35 mm
Headphone output (1/4" jack), 6.35 mm
Line in / Phono in* (2 x RCA jacks)
Line out (2x RCA jacks)
Optical SPDIF input and output (2 x optical connectors)
* Equipped with RIAA EQ (Equalization), which allows recording from a turntable directly without a pre-amp.
Interface: USB 2.0

Package Contents
Sound Blaster Digital Music Premium HD
Quick Start leaflet
Installation CD

SPECIFICATIONS
Output
Stereo
Audio Processor
X-Fi
Signal-to-Noise Ratio (SNR)
114dB
Connectivity Options (Main)
Headphone Out: 1 x 1/4" jack
Line Out: 2 x RCA jacks
Microphone In: 1 x 1/4" jack
Line / Phono1 In: 2 x RCA jacks
Optical Out: 1 x TOSLINK
Optical In: 1 x TOSLINK
1Equipped with RIAA EQ (equalization)
Headphone Amp
Up to 330 Ohms
Max Channel Output
Stereo

General
Audio Processor
X-Fi
SBX Pro Studio
Yes
Max. Playback Quality
24-bit / 96kHz
Max. Recording Quality
24-bit / 96kHz
Output
Stereo
Key Features
Signal-to-Noise Ratio (SNR)
114dB
Connectivity Options (Main)
Headphone Out:
1 x 1/4" jack
Line Out:
2 x RCA jacks
Microphone In:
1 x 1/4" jack
Line / Phono1 In:
2 x RCA jacks
Optical Out:
1 x TOSLINK
Optical In:
1 x TOSLINK
1Equipped with RIAA EQ (equalization)
Headphone Amp
Up to 330 Ohms
EAX
EAX Advanced
Audio Fidelity
Up to 24-bit / 96kHz
Software & Compatibility
Supported Operating Systems
Windows 8
Windows 7
Windows Vista SP1 or higher
Windows XP SP2 or higher
Compatible Platform
USB 2.0
Recommended Usage
Gaming
Yes
Home Entertainment
Yes
Pro Audio
Yes

SYSTEM REQUIREMENTS
Microsoft Windows 8, Windows 7, Windows Vista, Windows XP (Professional x64 Edition, Service Pack 2 or above)
Intel Core2 Duo or AMD equivalent processor, 2.2 GHz or faster
Available USB port
1 GB RAM
600 MB of free hard disk space
Headphones or amplified speakers (available separately)
CD-ROM/DVD-ROM drive for software installation
Internet connection
Note: Sound Blaster Digital Music Premium HD is also known as Sound Blaster X-Fi HD in certain regions.

Гаранция: 12 месеца
